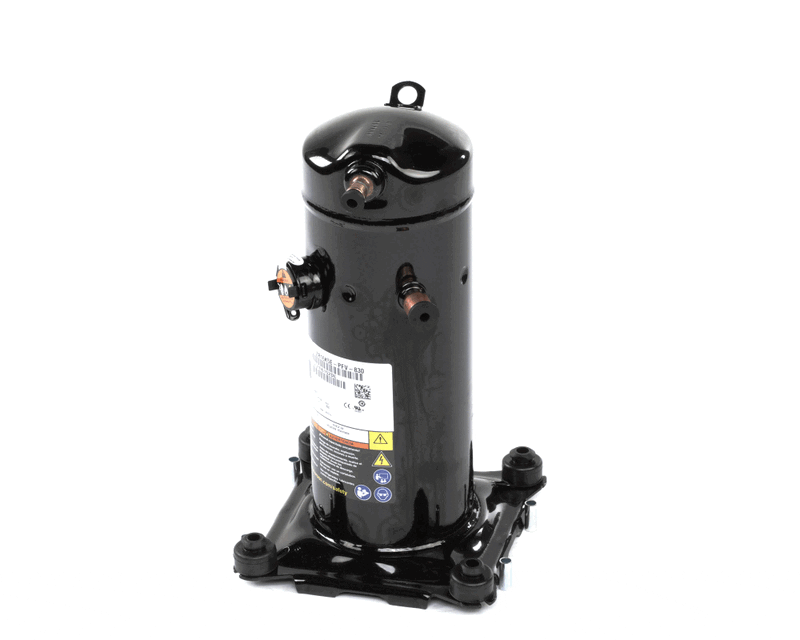

Tempstar ZR16K5E-PFV-830 ZR Series Scroll Compressor, Single Stage, 16,000 BTUH, R22

Product Description

The Tempstar ZR16K5E-PFV-830 is a high-efficiency scroll compressor designed for HVAC systems. This model provides a cooling capacity of sixteen thousand BTUH and operates with R22 refrigerant. It runs at 208 to 230 volts, making it suitable for various installation scenarios.

• Features single-stage operation for steady cooling.
• Has a compact design with dimensions of nine point three by fourteen point eight seven by nine point three inches.
• Internal protection for motor durability.

Product Highlights

The Tempstar ZR16K5E-PFV-830 provides reliable performance in cooling applications and can be integrated into existing HVAC systems, ensuring energy-efficient operation.

Product Information

Standard Information

• Part Number: 050620
• Manufacturer: TEMPSTAR

Technical Specifications

• Capacity (BTUH): 16,000
• RLA: 10
• MCC (Amps): 14.0
• Discharge Connection: 1/2 Stub
• Suction Connection: 3/4 Stub
• Dimensions (L x H x W): 9.30 x 14.87 x 9.30 (inches)
• HP: 1.3
• Oil Charge (initial): 25 (oz)
• Internal Free Volume: 120.0 (in^3)
• LRA-High: 41.0
• Max Operating Current: 10.0
• Motor Protection: Internal Inherent Protection
• Motor Type: Single-Phase
• Oil Recharge: 21 (oz)
• Oil Type: Mineral Oil
• Refrigerant: R22
• Voltage: 208-230/1/60
