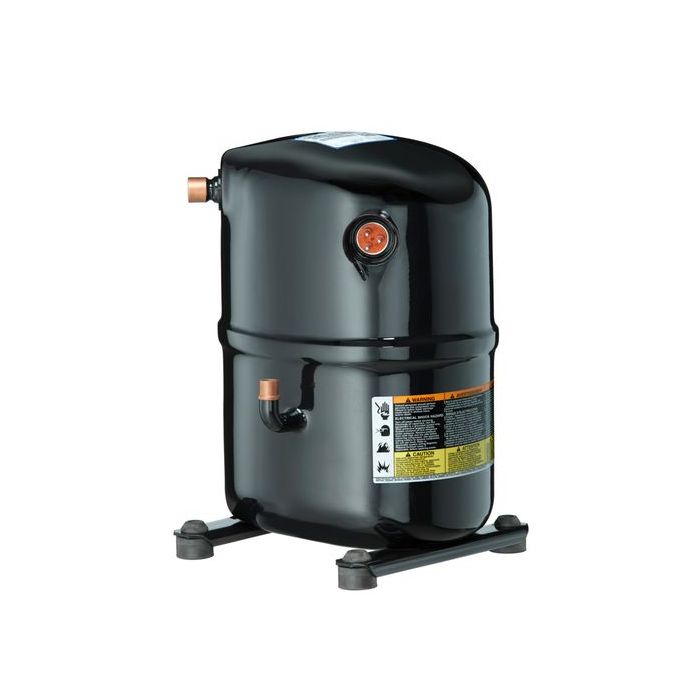

Tempstar CR34K6E-PFV-775 Copeland CRK6 Series Reciprocating Compressor R-22

Product Description

The Tempstar CR34K6E-PFV-775 is a Copeland CRK6 series reciprocating compressor designed for HVAC applications. This model operates using R-22 and R-407C refrigerants and is suitable for single-phase systems with a cooling capacity of thirty-two thousand BTU per hour. It is widely used in residential and commercial air conditioning systems.

• Capacity: 32,000 BTU/hr
• Voltage: 208-230 Volts
• Motor Type: Single-Phase

Product Highlights

This compressor is equipped with a crankcase heater and features internal motor protection. It offers reliable performance with minimal maintenance.

Product Information

Standard Information

• Manufacturer: TEMPSTAR
• Model: CR34K6E-PFV-775

Technical Specifications

• RLA: 16.1
• MCC (Amps): 22.5
• Connections Discharge: 1/2 Stub
• Connections Suction: 3/4 Stub
• Dimensions L x H x W: 10.23 x 13.81 x 9.65 inches
• Initial Oil Charge: 45 ounces
• Internal Free Volume: 470.0 cubic inches
• LRA-High: 82.0
• Max Operating Current: 18.0
• Oil Recharge: 43 ounces
• Oil Type: Mineral Oil
• Refrigerant: R22
• Voltage: 208-230/1/60
