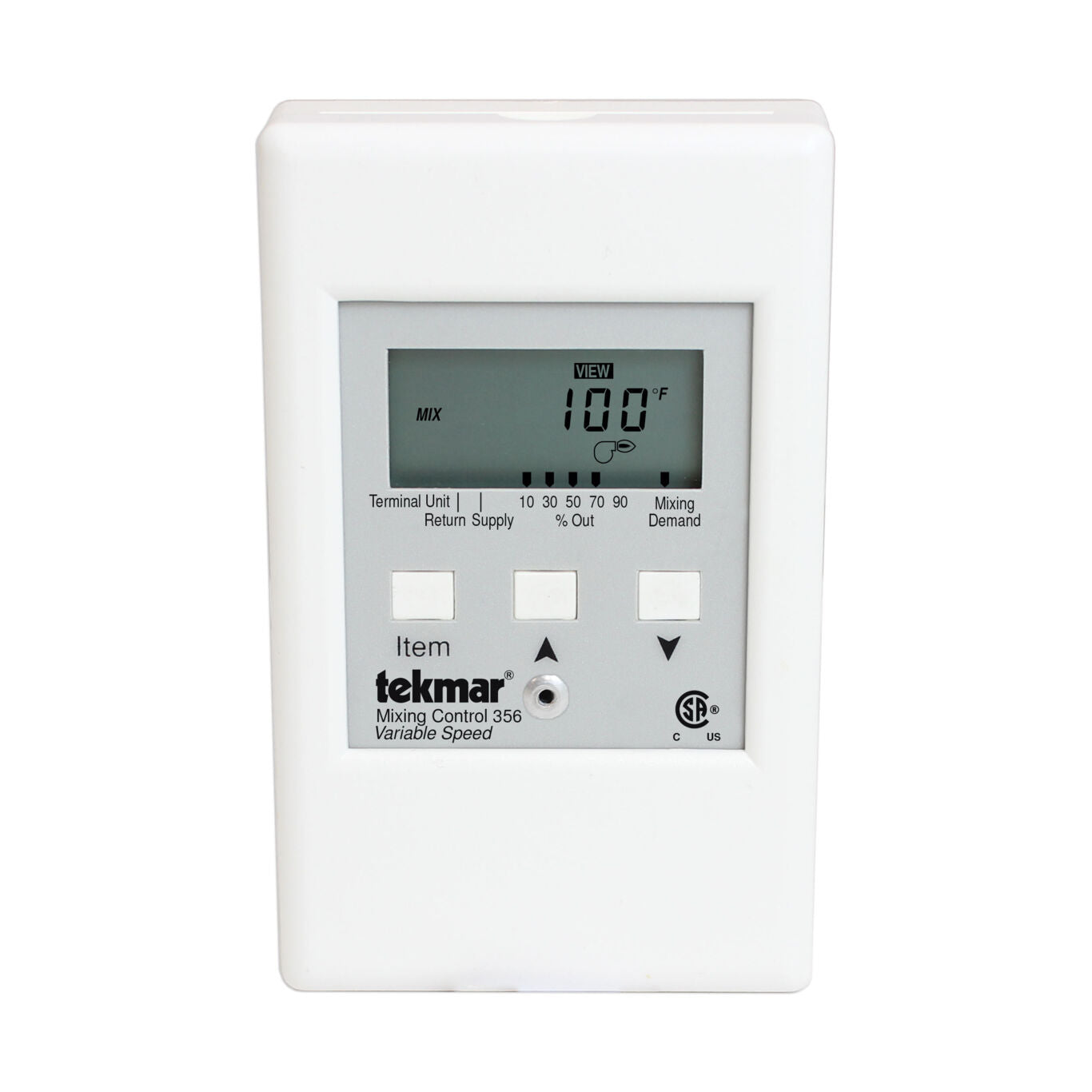

Tekmar T356 MIXING CTRL VAR SPD/T353 for Hydronic Heating & DHW Systems

The Tekmar Mixing Control 356 (T356) is designed to operate a mixing pump to control the temperature in a hot water heating system using outdoor reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for boiler protection with full reset. This control regulates a single heating water temperature through outdoor reset and provides mixing by speeding up or slowing down a single permanent capacitor (standard wet rotor) circulator.

Features:

• Hydronic heating and DHW systems
• To control operating temperatures, pump operation and zones
• T356 variable speed injection mixing control, outdoor reset or setpoint temperature control, 24V AC power supply required
• T353 360 floating action mixing control, outdoor reset or setpoint temperature control, 120V AC power supply required, 24V AC output

Specifications:

• CSA Certified: Yes
• Color Finish: White
• Color Finish Category: Whites
• Depth: 1-7/8 in
• Height: 4-3/4 in
• Material: Plastic
• Material Type: PVC
• Power Source: Electric
• Size: 4-3/4 in x 2-7/8 in x 1-7/8 in
• UL Listed: Yes
• Volts: 24V
• Width: 7-9/16 in
