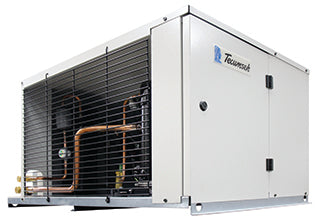

Tecumseh AWG4523EXNHG 2H1190-22 Outdoor Condendsing Unit 200-230V/60Hz

Tecumseh AWG4523EXNHG 2H1190-22 Outdoor Condendsing Unit 200-230V/60Hz

Description:
Air-cooled low and medium temperature condensing unit platform with both indoor and outdoor options. Focusing on the 1/2 to 6 HP capacity range, Tecumseh ARGUS is ideal for walk-in coolers and freezers and provides restaurant, grocery stores and convenience stores unmatched performance and configurability which keeps produce and other products at optimal freshness.

Specifications:
High Temperature Rated @ 45F
Ref: R-22
Model Number: AWG4523EXNHG
Unit Bill of Material: 2H1190-22
Volt/Hz/Ph: 208-230/60/1
HP: 2
Starting Torque: High
Capacity (Btu/h) at 95F Ambient
20: 13,946
30: 17,430
40: 21,188
45: 23,169
50: 25,218
Dimensions (in) L: 40.7
Dimensions (in) W: 32
Dimensions (in) H: 26.5
Connection Size (in) Suction: 7/8 ODF
Connection Size (in) Liquid: 3/8 ODF
Wt (lbs): 385
