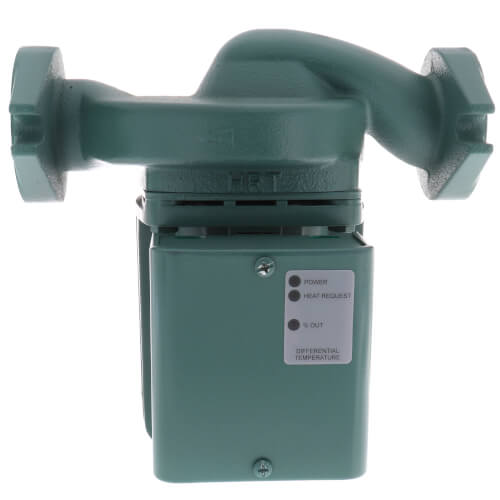

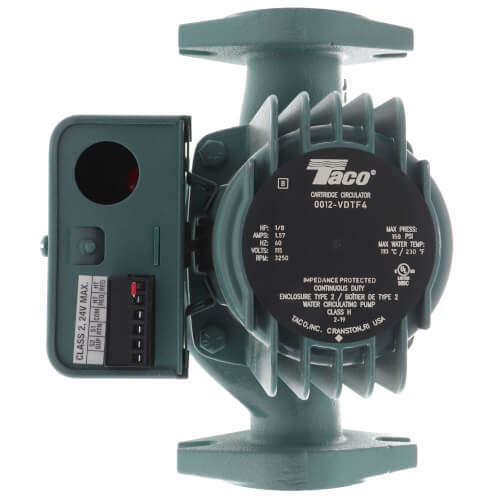

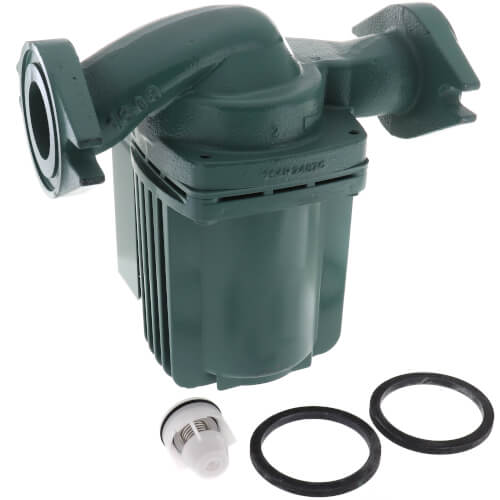

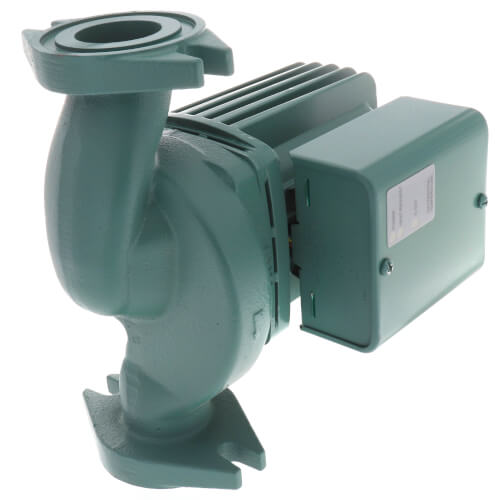

TACO 0012-VDTF4 Variable Speed Delta T Circulator

SKU / MPN:
0012-VDTF4
SKU / MPN: 0012-VDTF4

$834.08
Notify When In Stock

Buy a system bundle and save up to 10%!

SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED

Secure
Ordering

Easy
Returns

100% Fit
Guarantee

Expert
Advice

Fast
Shipping

HAVE A QUESTION? Our friendly team is ready to help!

Product Information

Taco 0012-VDTF4 Variable Speed Circulator Pump Cast Iron Differential Temperature with Flange.The Variable Speed Delta T 0012-VDTF4 Cartridge Circulator (00-VDT) is a microprocessor-based pump which automatically adjusts its performance to deliver the optimal heat transfer based on the actual operation of the system. The 00-VDT regulates the temperature to provide a fixed temperature difference of between 5 - 50 Degrees between two field installed sensors. Variable speed pumping to maintain a set differential temperature (delta T) between two sensors allows for automatic adjustment of the pump's performance to match the load of the system or zone, eliminate velocity noise in zone valve systems and conserve energy. Since delta T is directly related to flow rate, the pump's speed continually adjusts to the required BTU per hour. In almost all applications the design of the system was based on being able to maintain a certain delta T and figured by using the universal hydronics equation of BTU/hr = GPM x 500 x Delta T. Given that, any time there is a change to the heat load (i.e. warmer day or greater heat loss from a structure) then the GPM should change to match the required BTU/hr. This is achieved when the variable speed 00-VDT Circulators automatically and continually adjust their GPM output (by varying speed) to match the required BTU/hr output of the system, no matter the changes in heat load, while always maintaining the designed delta T between a supply and return sensor. .Find more e-Smart Products

What Our Customers Are Saying

Thank you for having all these small crazy little parts! I can only imagine the organization of all of this! You are appreciated!

-Kimberly Erhart

Love this website, prompt call back and had the necessary information that I was inquiring about. And had the part as well.

-John Crowe

I found exactly what I needed to replace the compressor of my home HVAC unit, thank you for your service and I will definitely do business with your company again.

-Valerio Tigno

So far so good! Customer service great and site is very well laid out and easy to use. So far every part I've needed has been i stock. Thanks Voomi.

-Casey Conrad

Glad I found your website. Saved a bunch of money on this order and will use again in future for my HVAC business.

-Gary Zitzmann

Safety Information

PROPOSITION 65 WARNING
By purchasing this item, you are agreeing to have this product installed by a trained technician. The installer or servicer assumes all responsibility for injury or property damage that may result. Refer to your local jurisdiction for installer licencing requirements.
