Product Description

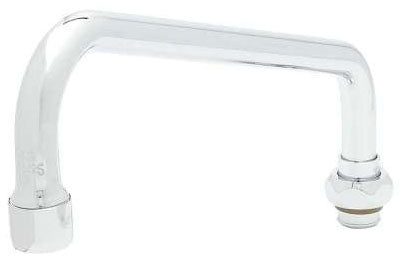

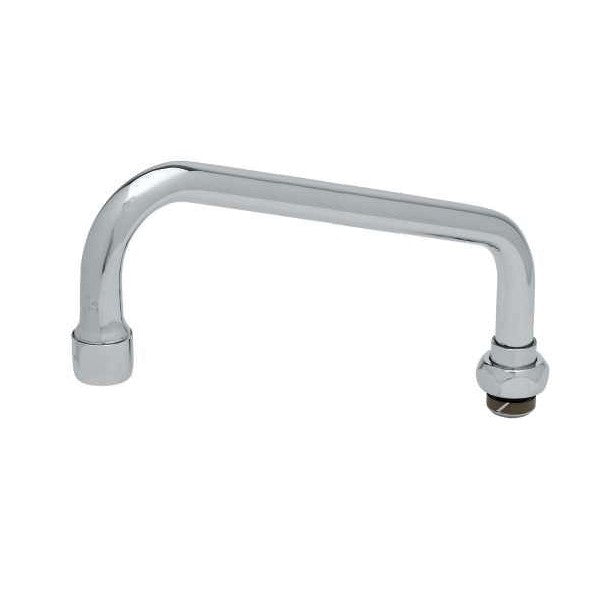

The T&S Brass 061X is a swing nozzle designed for use with T&S swivel outlet faucets. With a spout height of six and three-eighths inches and a spout reach of ten inches, it delivers a flow rate of twenty-six point three gallons per minute at sixty PSI. The product is lead-free and features a chrome-plated finish for durability.
- Stream regulator outlet enhances water flow control.
- Compatible with various T&S fittings for easy installation.
- Constructed from solid brass for reliability.
Product Highlights
The T&S Brass 061X is ideal for commercial and residential applications where flexibility and control in water delivery are needed.
Product Information
Standard Information
-
Manufacturer: T&S Brass
-
MPN: 061X
Technical Specifications
-

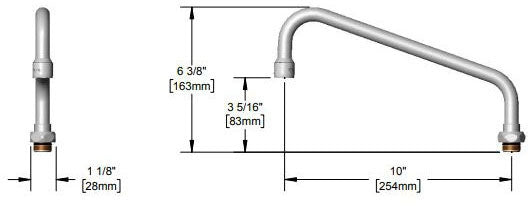

Spout Height: 6-3/8 inches
-
Spout Reach: 10 inches
-
Flow Rate: 26.3 GPM at 60 PSI
-
Material: Brass
-
Finish: Chrome Plated
-
Outlet Connection: 55/64 Inch-27 UN Male Threaded
-
Pressure Rating: 20 to 125 PSI
-
Temperature Rating: 40 to 140 Deg F
-
Applicable Standards: ASME A112.18.1, NSF 61-9/372, CSA (Canada and US)
-
Inclusions/Features: Stream Regulator
-
Used On Item: Double Pantry Faucet
-
Used On Item Part No: B-0230-EE-061X/B-0226-CC, B-0226/B-0220-EE-061X
