Product Description

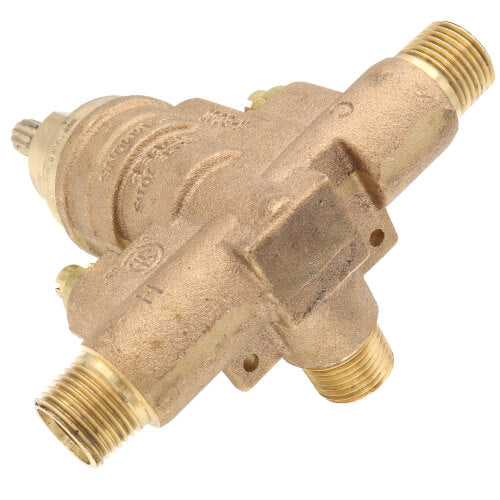

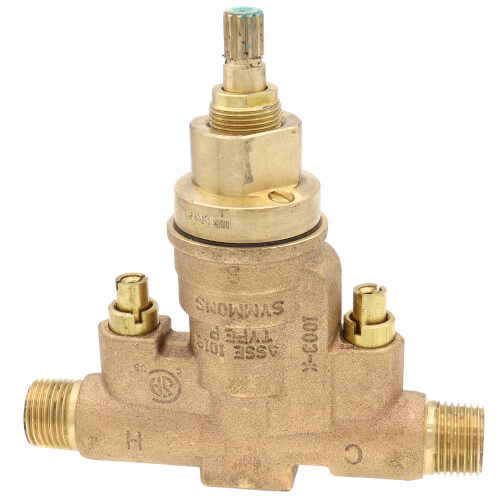

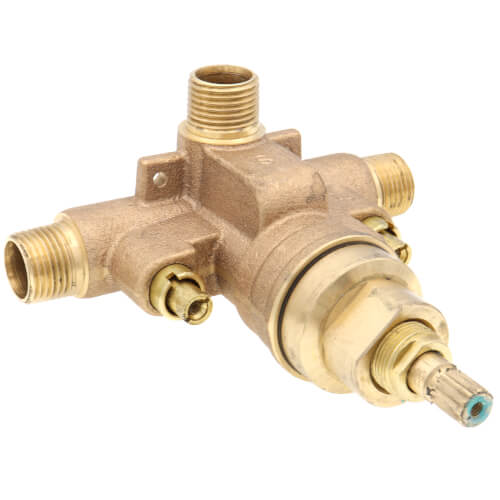

The Symmons Temptrol 261XBODY is a shower valve body designed for pressure balancing. It features a 1/2 inch inlet connection and is constructed from brass, bronze, and stainless steel. This valve body ensures a safe shower experience by maintaining the desired water temperature.
- Pressure balancing mixing valve
- Adjustable stop screw for maximum hot water control
- Integral service stops for easy valve servicing
Product Highlights
The valve includes features that accommodate both thin wall and back-to-back installations, making it versatile for various plumbing needs.
Product Information
Standard Information
-
Manufacturer: Symmons
-
UPC: 67125655435
Technical Specifications
-
Inlet Size: 1/2 inch
-
Outlet Connection: 1/2 inch IPS/Soldered
-
Inlet Connection: IPS/Soldered
-
Applicable Standards: CSA B125.1, ASSE 1016, ASME A112.18.1
-
Construction Materials: Brass, Bronze, Stainless Steel
-
Dimensions: 7 inches deep x 7.5 inches wide x 7 inches high
-
Weight: 5 pounds
