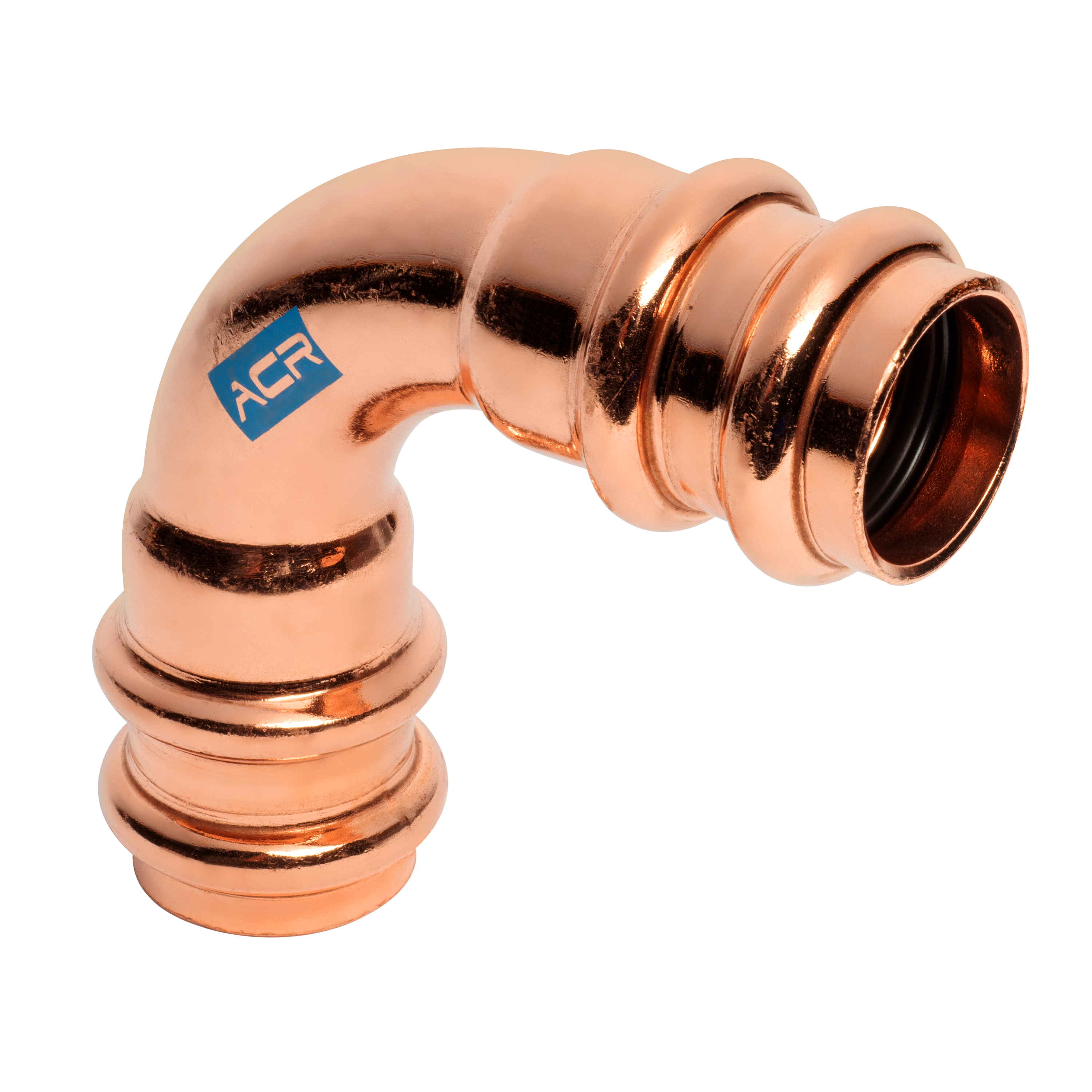

Streamline RP02747 ACR Press 90 Degree Elbow

Product Description

The Streamline RP02747 is an ACR press 90-degree elbow for connecting copper tubes. This elbow has press-to-press connections on both ends with a size of one and one-eighth inches. Made from copper, it is compatible with Type ACR, L, and K hard and soft copper tubes. It also features Two Ring Advanced Press (T.R.A.P.) Technology.

• 90-degree bend angle
• Press-to-press connection type
• Constructed from copper

Product Highlights

This elbow is suitable for HVAC and plumbing applications where strong and reliable connections are necessary.

Product Information

Standard Information

• Material: Copper
• Operating Temperature (Min): -40 °F
• Operating Temperature (Max): 250 °F
• Operating Pressure (Max): 700 psi

Technical Specifications

• Bend Angle: 90 Degrees
• End Type: ACR Press
• End Size: 1 1/8 inches
• Overall Length: 3.51 inches
• Overall Height: 3.51 inches
• Overall Width: 1.50 inches
• Dimension X: 1.30 inches
