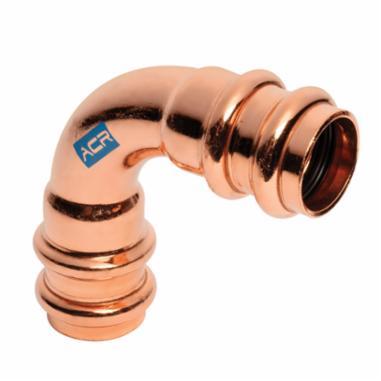

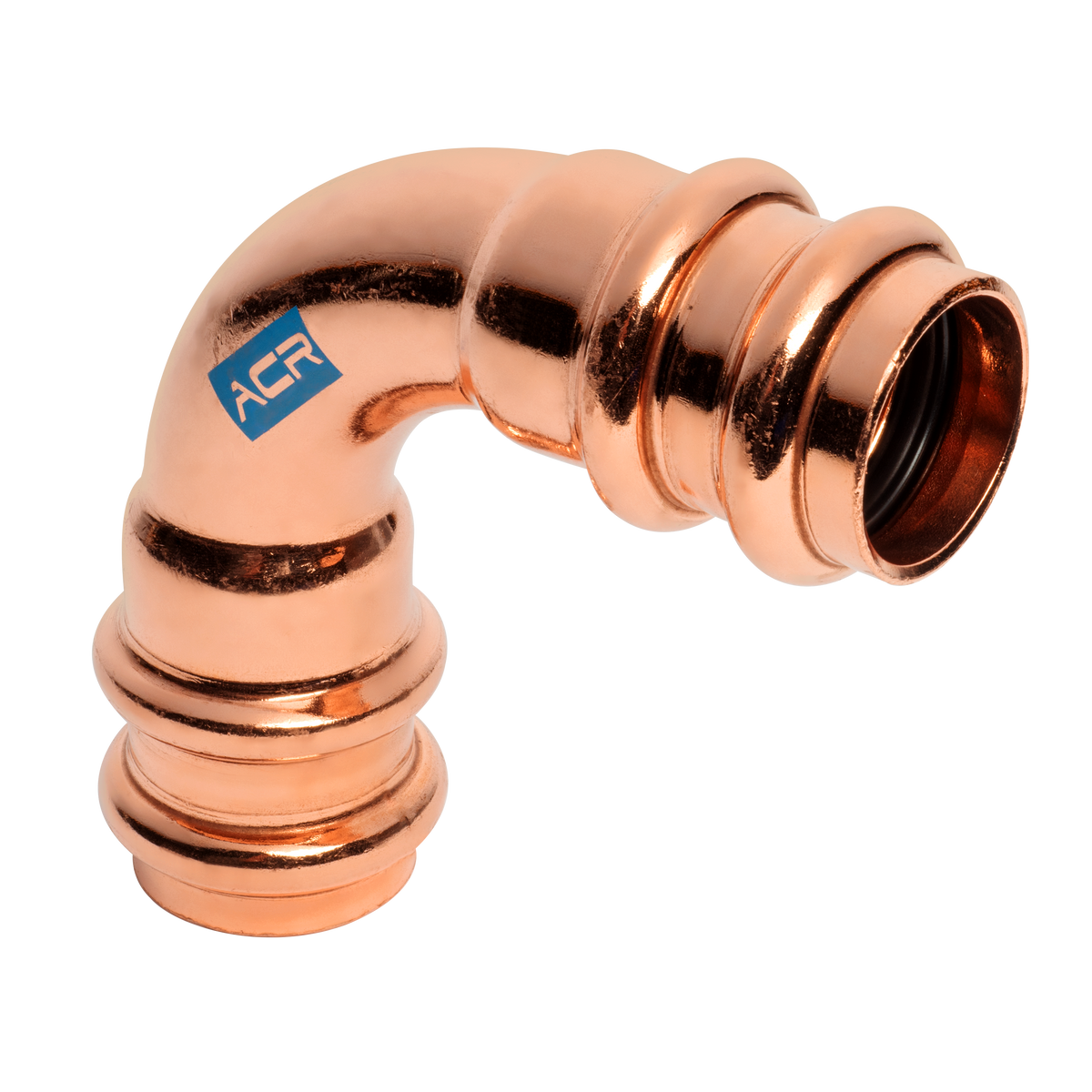

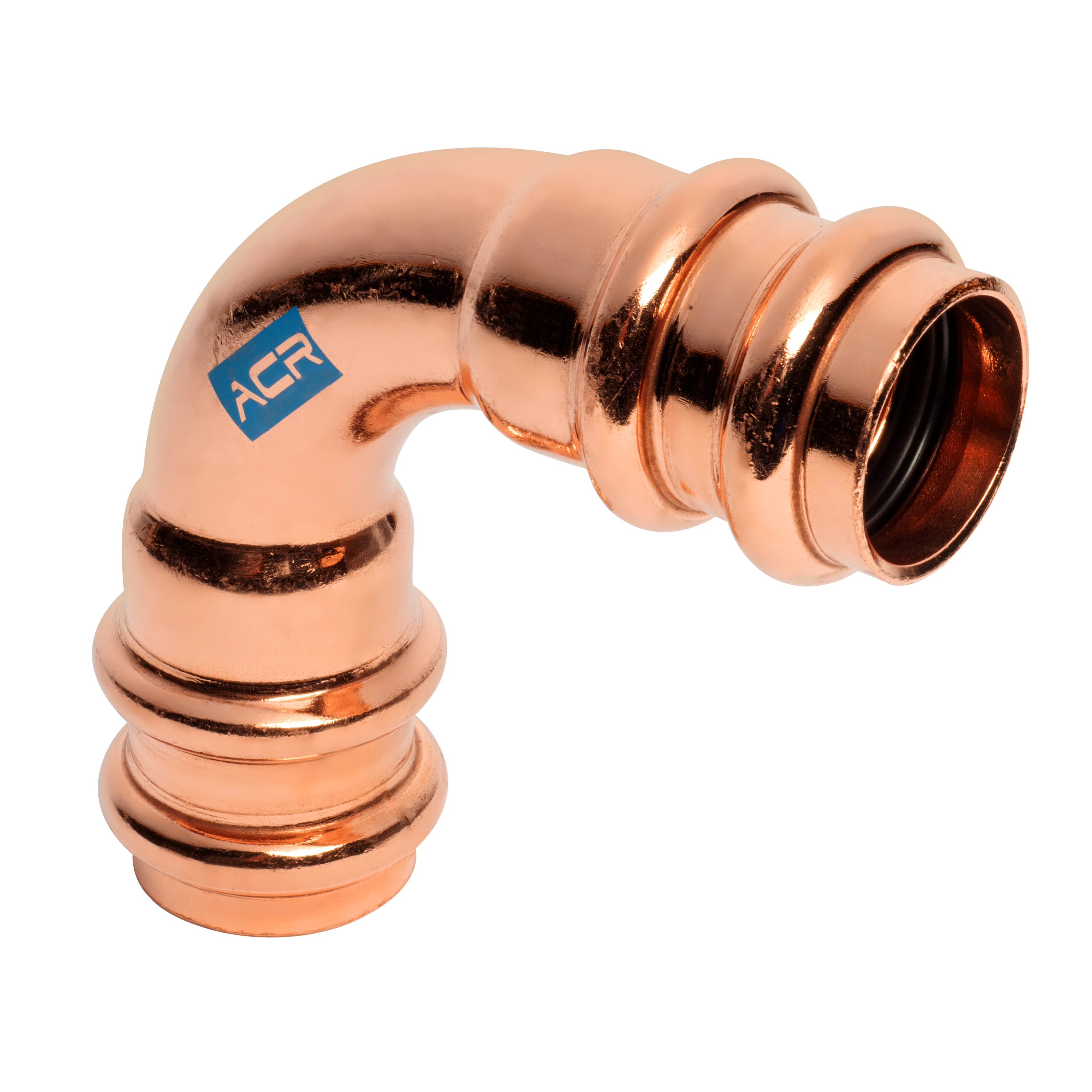

Streamline RP02728 3/4 ACR Copper Press 90 Degree Elbow

Product Description

The Streamline RP02728 is a 90-degree elbow fitting designed for ACR press connections. Made from copper, this fitting is suitable for Type ACR, L, and K hard and soft copper tubes. The elbow has press connections on both ends, each sized at three-fourths of an inch. This product is used in HVACR applications and works with R410A and other common refrigerant gases and oils.

• 90-degree elbow fitting
• ACR press connection
• Compatible with copper tubes

Product Highlights

This elbow fitting connects copper tubes at a right angle, ensuring secure and efficient transitions in your piping systems.

Product Information

Standard Information

• Brand: Streamline
• MPN: RP02728

Technical Specifications

• Fitting Type: 90 Degree Elbow
• Material: Copper
• End Type: ACR Press
• End Size: 3/4 inch
• Overall Length: 2.88 inches
• Overall Height: 2.88 inches
• Overall Width: 1.07 inches
• Operating Temperature (Min): -40 °F
• Operating Temperature (Max): 250 °F
• Operating Pressure (Max): 700 psi
• Weight: 0.22 lb
• For Use With: Type ACR, L, K Hard and Soft Copper Tubes
• Pressure Rating: 700 psi
• Temperature Rating: -40 to 250 °F
