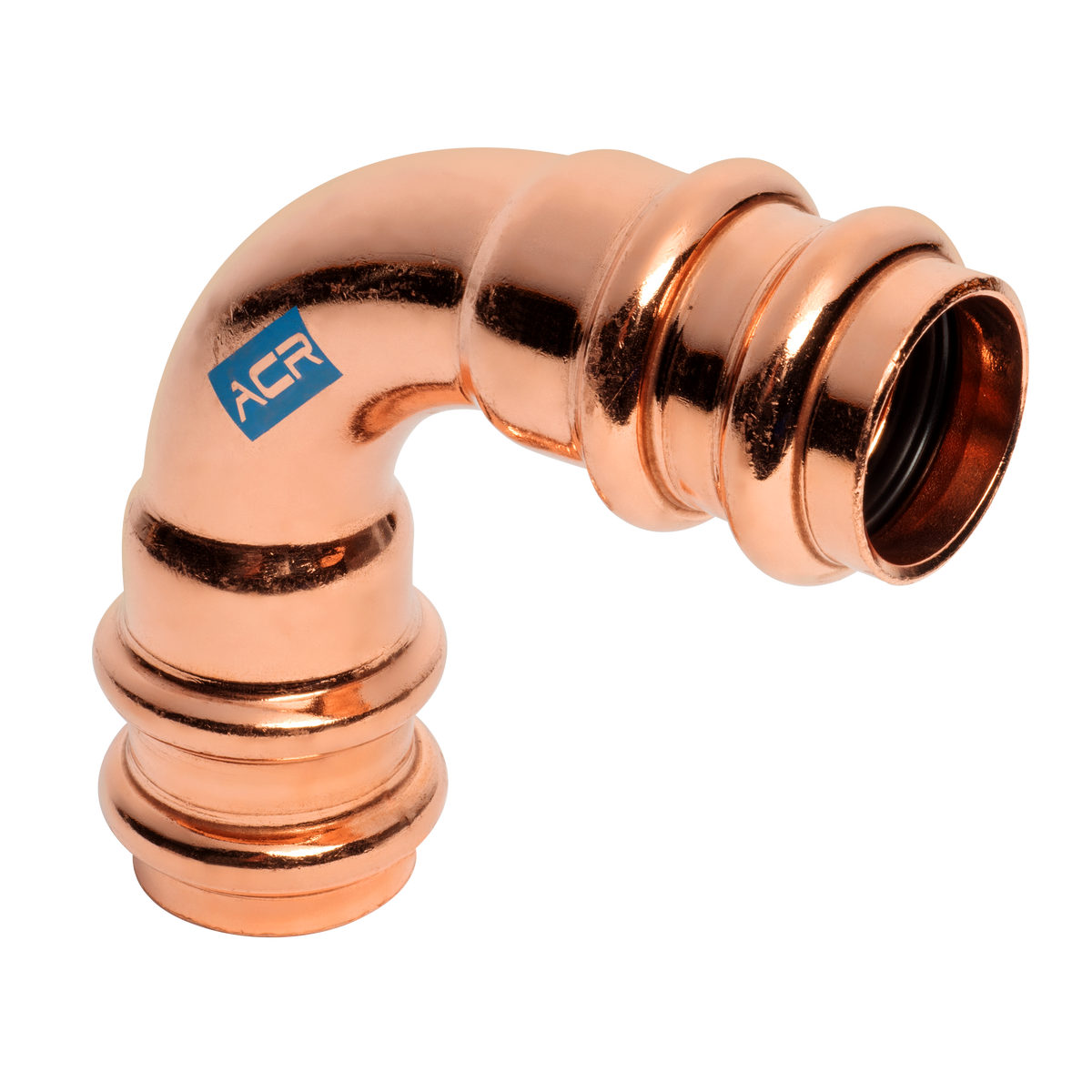

Streamline RP02715 ACR 90 Degree Elbow (P x P)

Product Description

The Streamline RP02715 is an ACR 90 degree elbow suitable for use with Type ACR, L, and K hard and soft copper tubing. This product uses Two Ring Advanced Press (T.R.A.P.) Technology along with a DualSeal Ring Design to provide a strong seal and enhance joint integrity. It also features a TrapZone Leak Barrier and Force360 Press Contour for consistent joint compression.

• Approved for use with Type ACR, L, and K hard and soft copper pipes.
• Incorporates a DualSeal Ring Design for effective sealing.
• Works with major full-size press tools.

Product Highlights

This elbow is designed for reliable connections in HVAC, refrigeration and piping systems where strong joints are essential.

Product Information

Standard Information

• Material: Copper
• End Type: ACR Press

Technical Specifications

• End Size: 1/4 inch
• Overall Length: 1.71 inches
• Overall Height: 1.71 inches
• Overall Width: 0.48 inches
• Dimension X: 0.51 inches
• Operating Temperature [Min]: -40 degrees F
• Operating Temperature [Max]: 250 degrees F
• Operating Pressure [Max]: 700 psi
• Qty Pcs / Bag: 5
• Master Qty Pcs / Box: 750
