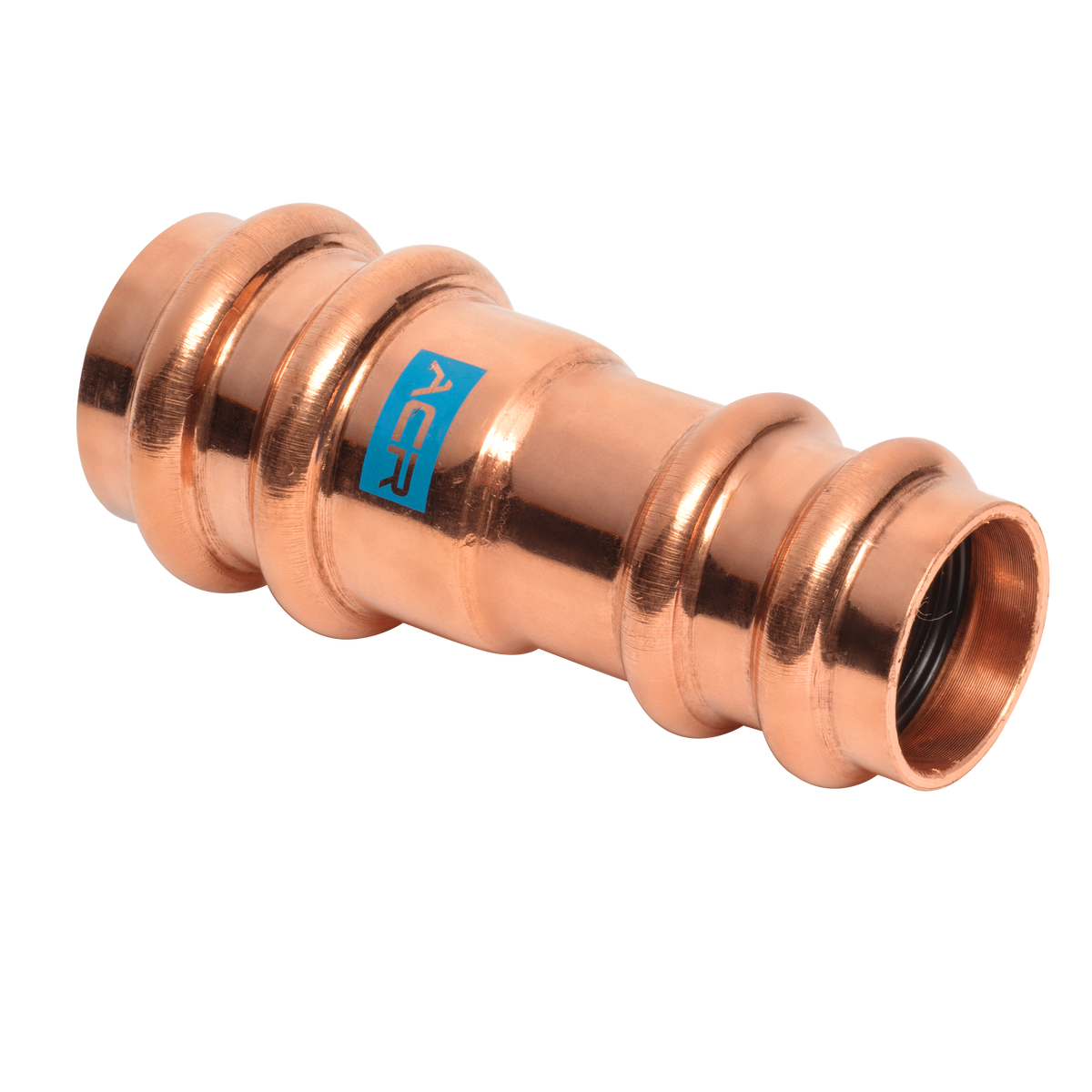

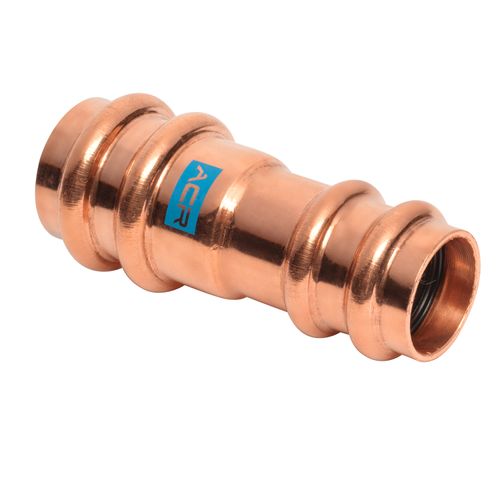

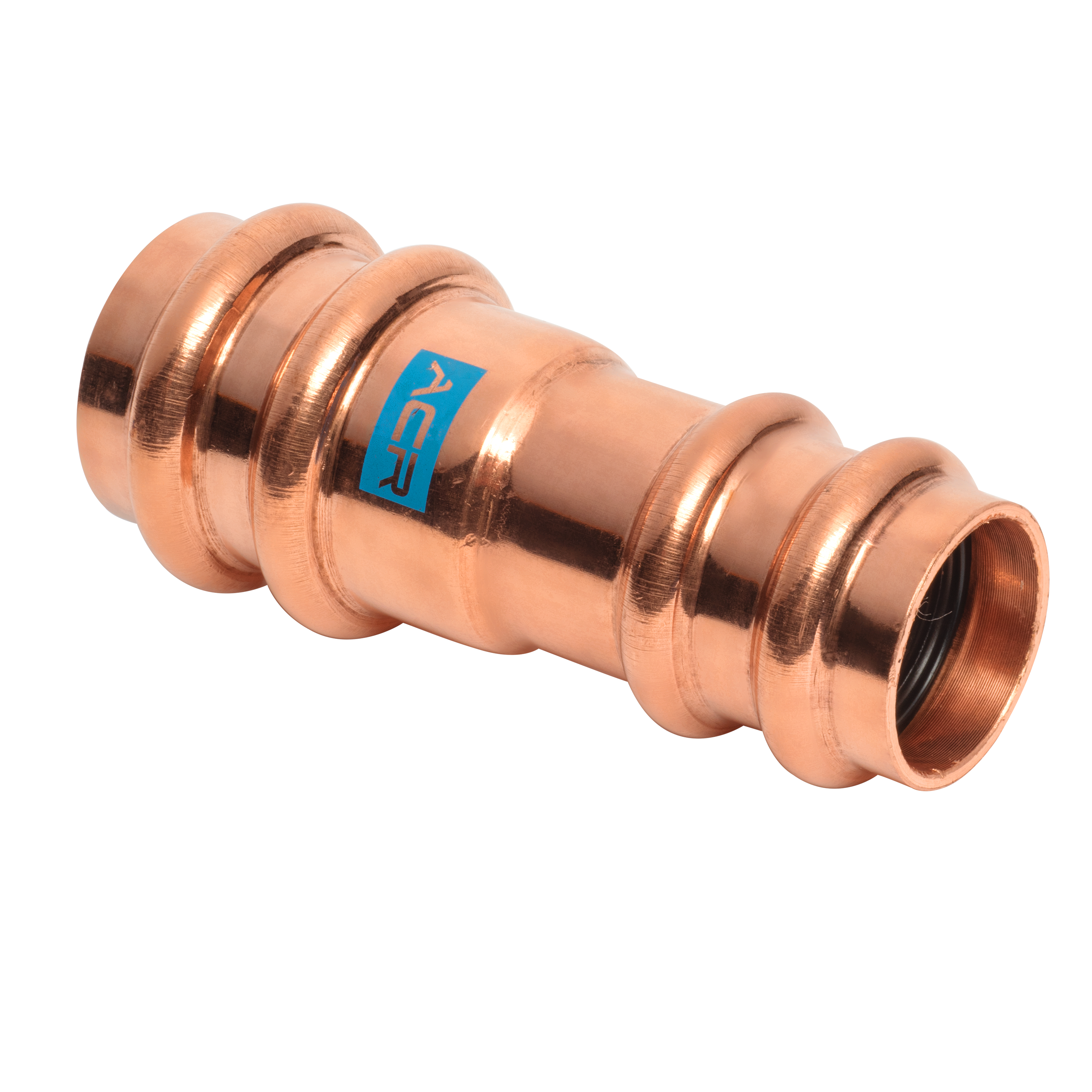

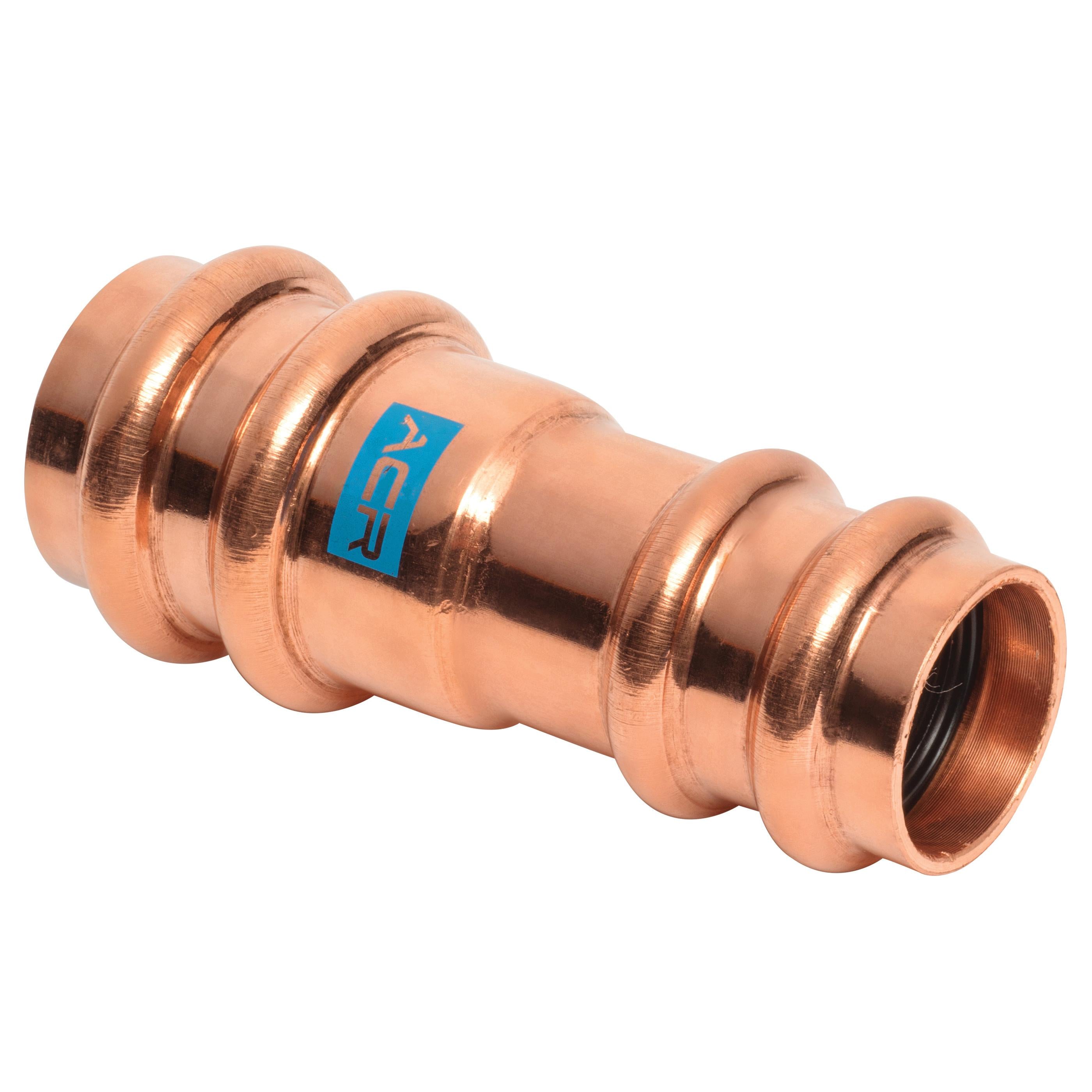

STREAMLINE RP01023 ACR Copper Press Reducing Coupling

Product Description

The STREAMLINE RP01023 is a copper press reducing coupling designed for ACR applications. It features press connections sized at five eighths inch and one half inch, allowing for the joining of different sized copper tubes. This fitting is suitable for use with Type ACR, L, and K hard and soft copper tubes. It is constructed from durable copper and is a key component of the ACR Press System.

• Press connections of five eighths inch and one half inch
• Constructed from copper for reliability
• Compatible with Type ACR, L, and K copper tubes

Product Highlights

This coupling is effective for ACR and refrigeration job applications.

Product Information

Standard Information

• Material: Copper
• End Type: ACR Press

Technical Specifications

• End Size: Five eighths inch
• Second End Type: ACR Press
• Second End Size: One half inch
• Operating Temperature (Min.): Negative forty degrees Fahrenheit
• Operating Temperature (Max.): Two hundred fifty degrees Fahrenheit
• Operating Pressure (Max.): Seven hundred psi
• Overall Length: Two point five eight inches
• Overall Height: Zero point nine six inches
• Overall Width: Zero point nine six inches
