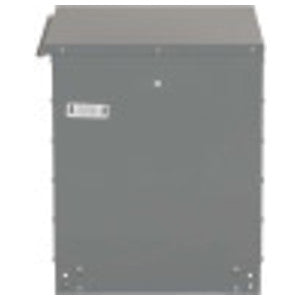

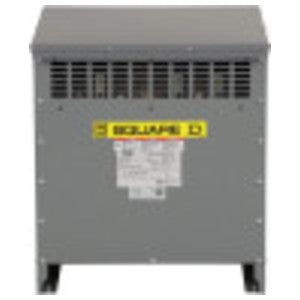

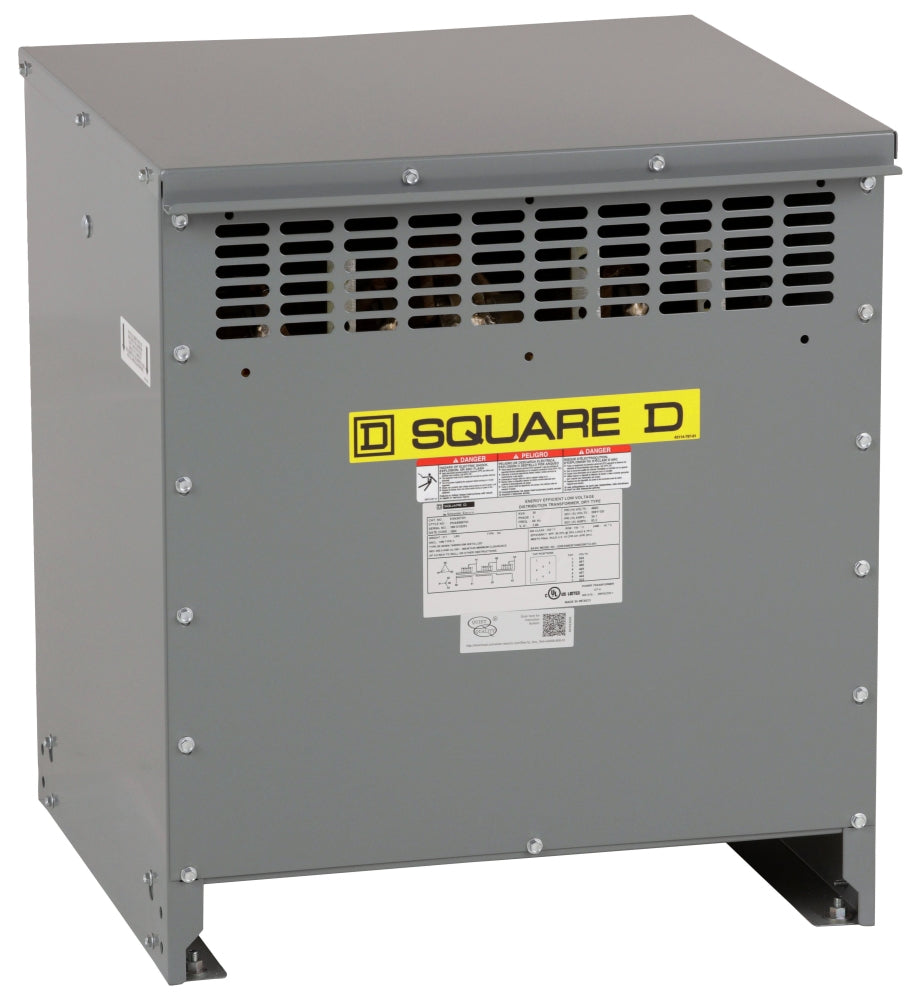

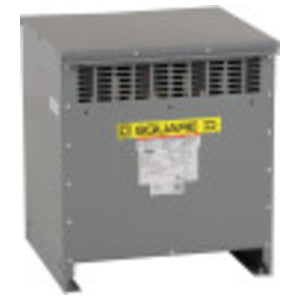

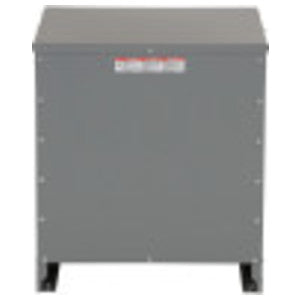

Square D EXN30T3H Transformer Dry Type 30kVA 480V Delta 208Y/120V

Product Description

Square D EXN30T3H Transformer Dry Type is engineered for durability and high performance. This transformer is designed for three-phase applications with a power rating of thirty kilovolt-amperes. The primary voltage is four hundred eighty volts delta, and the secondary voltage is two hundred eight volts wye to one hundred twenty volts.

• UL 1561 and CSA C22.2 certified for safety.
• Meets DOE 2016 energy efficiency standards.
• Designed for floor mounting, with options for wall or ceiling mounting.

Product Highlights

The EXN30T3H provides reliable power for various commercial and industrial applications, ensuring efficient energy management.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590127254

Technical Specifications

• Power Rating: 30 kVA
• Primary Voltage: 480V AC
• Secondary Voltage: 208Y/120V AC
• Size: 25.51 inches width x 24.69 inches depth x 28.31 inches height
• Frequency Rating: 60 Hz
• Weight: 303 pounds
• Temperature Rise: 150°C
• Sound Level: 39 decibels
• Enclosure Type: NEMA 2/3R
