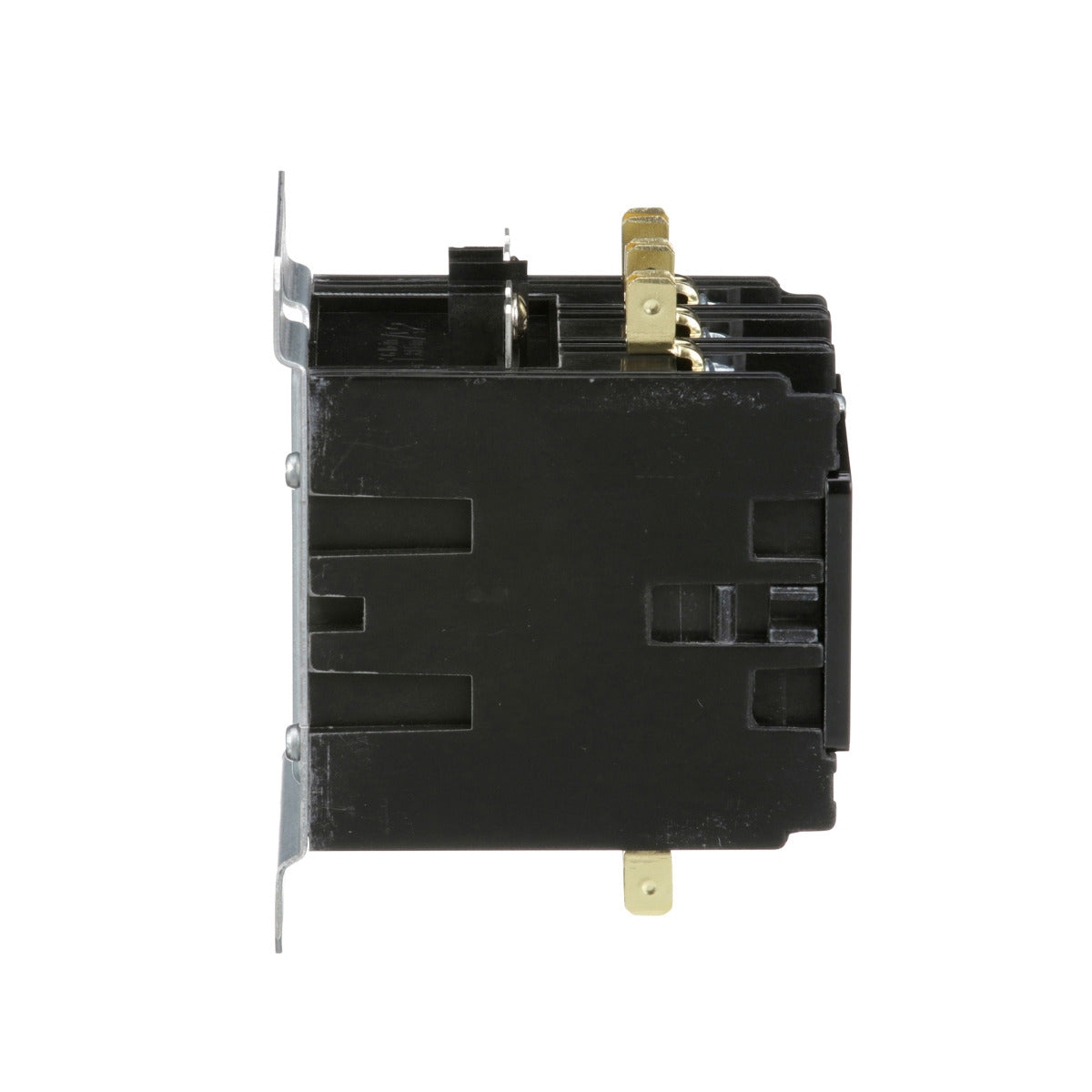

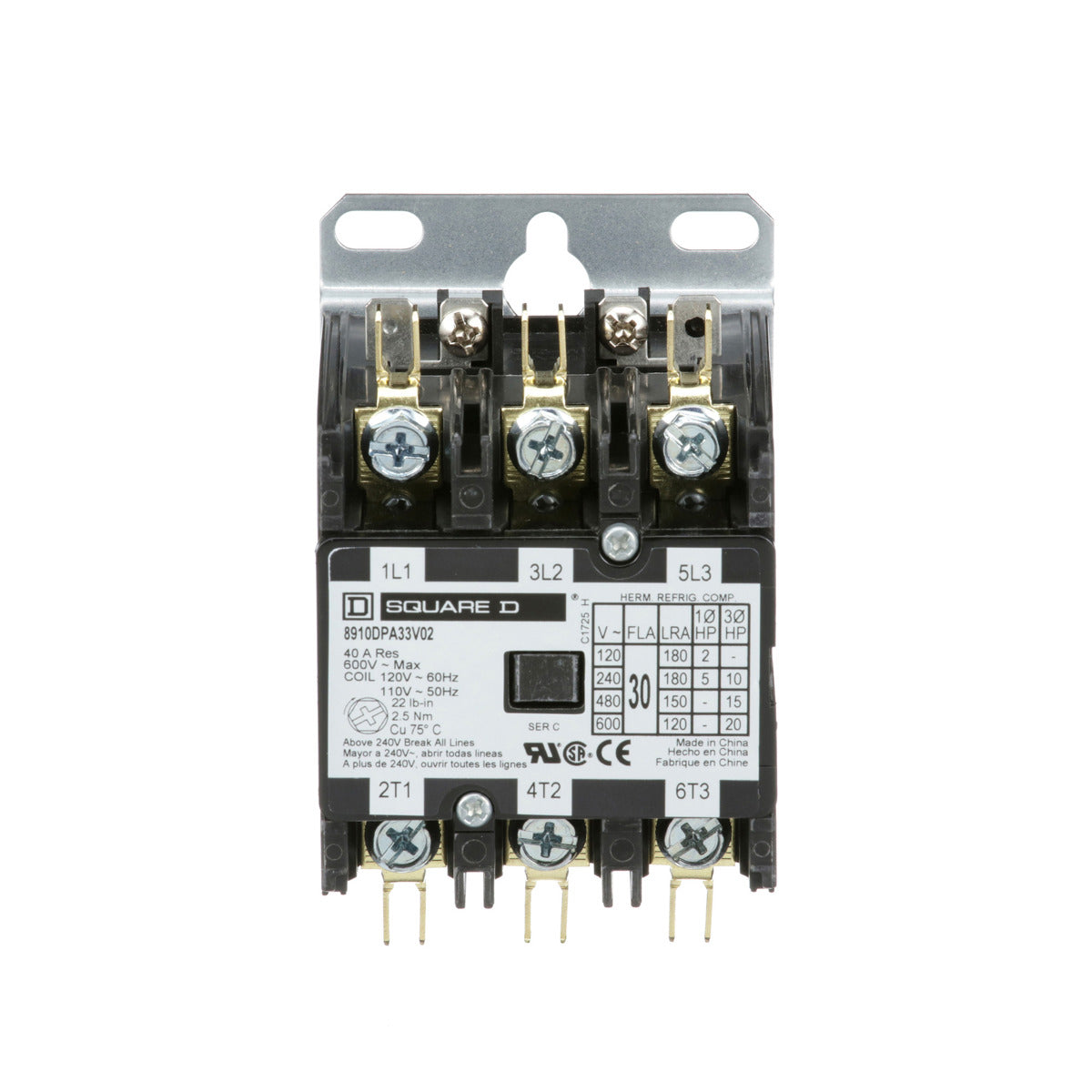

Square D 8910DPA33V02 110/120 VAC 30 Amp 3-Pole 3NO NEMA 1 Non-Reversing Definite Purpose Contactor

Product Description

Square D 8910DPA33V02 is a definite purpose magnetic contactor. This contactor operates at 110/120 volts AC and handles a current of thirty amperes. It is designed for use in heating, air conditioning, and refrigeration applications. The device supports loads rated up to fifty horsepower at six hundred volts AC. It features a three-pole configuration with a full load rating of thirty amperes and a resistive rating of forty amperes. Additionally, it supports two horsepower at one hundred fifteen volts AC single phase, five horsepower at two hundred thirty volts AC single phase, and more. The contactor comes with a non-replaceable coil available in various voltages, specifically rated at 110/120 VAC and operates at fifty to sixty hertz.

• Designed for heating and refrigeration applications.
• Handles multiple voltage and phase requirements.
• UL recognized and CSA certified for safety.

Product Highlights

This contactor is applicable in many industrial settings. Ideal for motor control and lighting control, it simplifies the management of electrical circuits.

Product Information

Standard Information

• Catalog Number: 8910DPA33V02
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 110/120 VAC
• Amperage: 30 Amp
• Number of Poles: 3 Pole
• Depth: 2.90 inches
• Width: 2.37 inches
• Height: 3.00 inches
• Warranty: 18 months
• Certifications: UL, CSA
