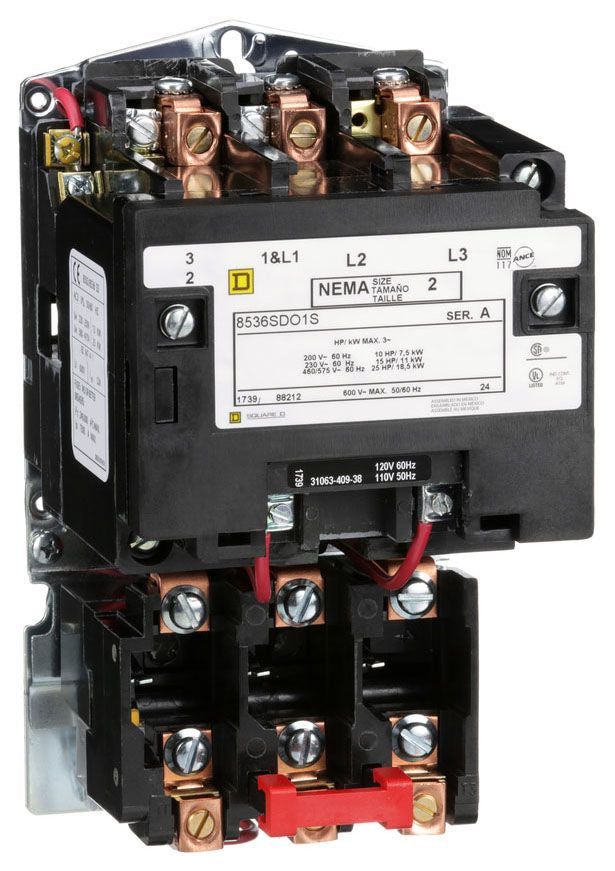

Square D 8536SDO1V02S 120V Starter

Product Description

Square D 8536SDO1V02S is a full voltage starter designed for effective motor control. This starter is built with a full voltage, non-reversing feature, rated at forty-five amps. It is suitable for three-phase motors and operates within a NEMA 2 size enclosure. The product is ideal for applications requiring reliable motor starting, protecting equipment in industrial and commercial settings.

• Full Voltage, Non-Reversing Starter
• NEMA 2 Size, Suitable for Three-Phase Motors
• Coil Voltage Rated at 110/120 Volt AC

Product Highlights

This starter is designed for use in a wide range of motor control applications and meets NEMA construction standards.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590188212

Technical Specifications

• Type: Full Voltage, Non-Reversing
• Size: NEMA 2
• Current Rating: 45 Amp
• Phase: 3
• Coil Voltage: 110 Volt AC at 50 Hertz, 120 Volt AC at 60 Hertz
• Enclosure Type: Open
• Power Rating: 10 HP at 200 Volt AC, 15 HP at 230 Volt AC, 25 HP at 460 Volt AC
• Overloads: Melting Alloy Thermal Overload Relay
