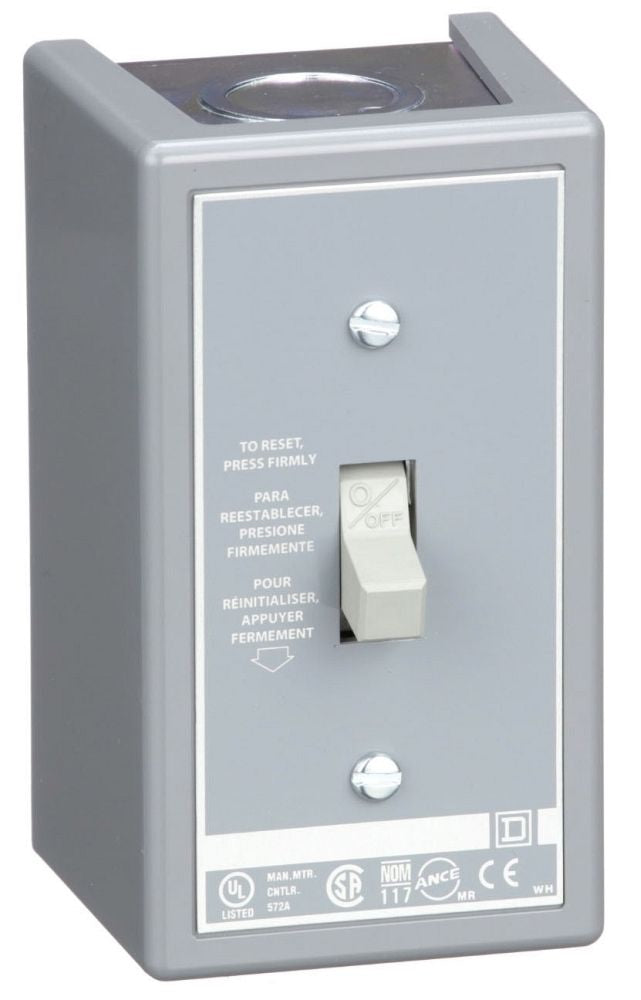

Square D 2510FG1 Manual Starter 277Vac

Product Description

The Square D 2510FG1 is a manual starter designed specifically for use with fractional horsepower motors. It serves as a reliable motor protector and is suitable for various applications, including small machine tools, pumps, fans, and conveyors. This model features a melting alloy thermal overload relay and operates on a toggle switch for ease of use.

• Non-reversing motor protection
• Rated for sixteen amperes
• Compliant with NEMA design standards

Product Highlights

Designed for efficient and safe motor control, the Square D 2510FG1 provides essential protection for motors operating at one horsepower or less. The NEMA 1 enclosure allows for surface mounting in dry locations.

Product Information

Standard Information

• Brand: Square D Co.
• Manufacturer: Square D

Technical Specifications

• Current Rating: 16 Ampere
• Poles: 1
• Enclosure Type: NEMA 1, Surface
• Type: Non-reversing, Motor Protector
• 1 Phase HP/Volts: 1 HP at 115/230/277 VAC
• Operator: Toggle
• UPC: 78590155393
• Construction Standard: NEMA
