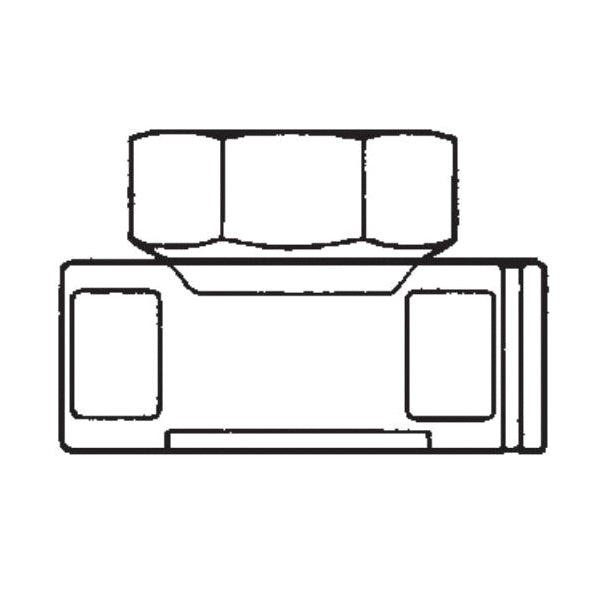

Spirax Sarco 70007 TDC Thermo-Dynamic Steam Trap

Product Description

The Spirax Sarco 70007 is a TDC Thermo-Dynamic steam trap designed for use in steam applications. This device cycles to discharge condensate close to steam temperature, ensuring efficient operation. It remains effective even in challenging conditions, such as water hammer and superheat.

• Operates with a minimum pressure of 3.5 psig.
• Constructed from durable stainless steel.
• Rated for a maximum pressure of 600 psig and a temperature of 800 degrees Fahrenheit.

Product Highlights

The Spirax Sarco TDC steam trap is essential for steam systems in need of reliable condensate discharge.

Product Information

Standard Information

• Brand: Spirax Sarco
• Manufacturer: Spirax-Sarco Inc

Technical Specifications

• Dimensions: 1.7 inches H x 1.7 inches W
• Domestic/Import: Domestic
• End Style: NPT
• Length: 2 inches
• Material: Stainless Steel
• Nominal Size: 3/8 inches
• Pressure Rating: 600 psig
• Series: TDC
• Temperature Rating: 800 degrees Fahrenheit
