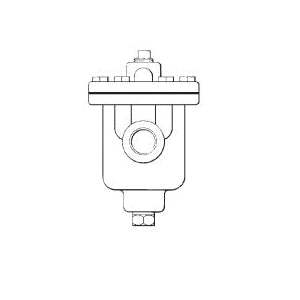

Spirax Sarco 62796 B3 Inverted Bucket Steam Trap

Product Description

The Spirax Sarco 62796 is an inverted bucket steam trap used in various steam applications. This trap uses an inverted bucket mechanism that reacts to the density difference between steam and condensate, allowing for efficient condensate discharge. It features a one inch nominal size and is made from cast iron.

• Fabricated from durable cast iron.
• Handles maximum pressure of 180 psig.
• Operates effectively at temperatures up to 450 degrees Fahrenheit.

Product Highlights

This steam trap is designed for use on heat exchange equipment to vent air and gases efficiently.

Product Information

Standard Information

• Manufacturer: Spirax-Sarco Inc
• Model: B3 Series

Technical Specifications

• Length: 7.9 inches
• Material: Cast Iron
• Nominal Size: 1 inch
• Pressure Rating: 180 psig
• Temperature Rating: 450 degrees Fahrenheit
• End Style: FNPT
• Steam Trap Type: Inverted Bucket
• Weight: 19.50 lbs
