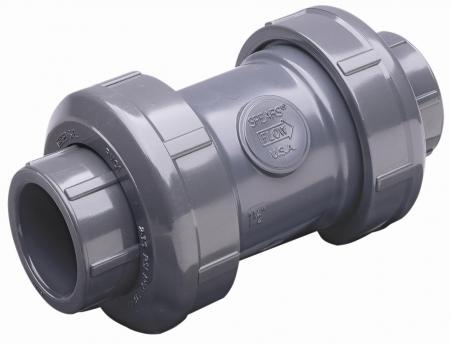

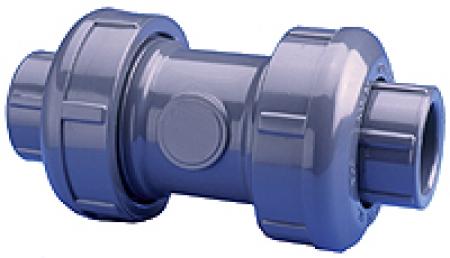

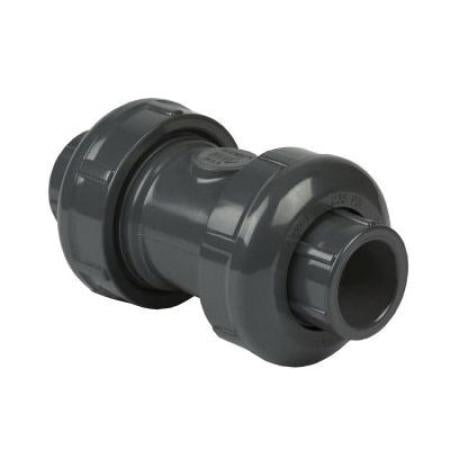

Spears 2229-005 1/2 PVC True Union Ball Check Valve Soc/FNPT EPDM

Product Description

The Spears 2229-005 is a 1/2 inch PVC true union ball check valve designed for use in various plumbing applications. It features a socket and female NPT connection, allowing for easy installation in both horizontal and vertical orientations. This valve can handle a pressure rating of two hundred thirty-five psi and is rated for water at seventy-three degrees Fahrenheit, ensuring reliable operation in standard plumbing systems.

• Chemical and corrosion resistant PVC body
• EPDM softgoods for durability
• FDA approved for potable water use

Product Highlights

The Spears ball check valve is designed to prevent backflow in piping systems. Its durable materials ensure long-lasting performance in both residential and commercial applications.

Product Information

Standard Information

• Manufacturer: Spears
• Model Number: 2229-005

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Color: Gray

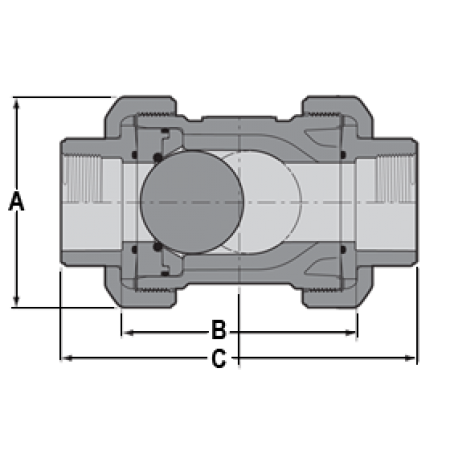

• Overall Dimensions: 2-9/16 inches height
• Inlet to Outlet Length: 5-1/8 inches
• Nominal Size: 1/2 inch
• Pressure Rating: 235 psi
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees Fahrenheit
• End Style: Socket/FNPT
• Domestic/Import: Domestic
