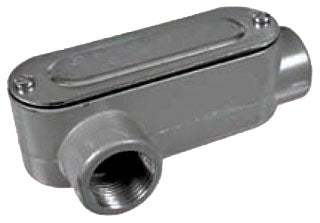

Southwire LR4CG Rigid Conduit Body

Product Description

The Southwire LR4CG is a rigid conduit body designed for ease of access to conductors. Its design allows for pulling, slicing, and maintenance of electrical wiring in a reliable manner. This product is suitable for use in concrete installations.

• UL and CSA approved.
• Constructed from die-cast copper-free aluminum.
• Includes a neoprene rubber gasket for enhanced sealing.

Product Highlights

This conduit body provides critical access for maintenance and installation tasks.

Product Information

Standard Information

• Manufacturer: Southwire
• UPC: 751338212718

Technical Specifications

• Access Opening: Right Side
• Approval: UL, CSA
• Configuration: LR
• Cover Type: Stamped Steel
• Hub Location: 90 Degree
• Hub Size: 1-1/4 Inch
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Number Of Hubs: 2
• Size REF: 7.89 inches x 3.39 inches x 2.77 inches
• Used On: Rigid Conduit
