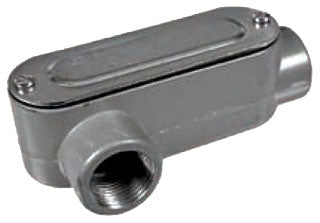

Southwire LR2CG Rigid Conduit Body Power (EA)

Product Description

The Southwire LR2CG Rigid Conduit Body offers a durable solution for accessing conductors. It is designed for use in various installations requiring reliable and easy access to electrical conductors. This conduit body is made of die-cast, copper-free aluminum with a neoprene rubber gasket for secure sealing.

• Access opening located on the right side
• Designed for use with rigid conduit
• UL and CSA approved

Product Highlights

This conduit body provides maintenance access for pulling and slicing while ensuring structural integrity in concrete applications.

Product Information

Standard Information

• Manufacturer: Southwire
• UPC: 751338212510

Technical Specifications

• Approval: UL, CSA
• Material: Die-Cast Copper Free Aluminum Body, Neoprene Rubber Gasket
• Configuration: LR
• Hub Size: 3/4 Inch
• Hub Location: 90 Degree
• Cover Type: Stamped Steel
• Access Opening: Right Side
• Number Of Hubs: 2
• Size REF: 5.09 IN x 2.33 IN x 1.63 IN
• Used On: Rigid Conduit
• Installation: Threaded
