Product Description

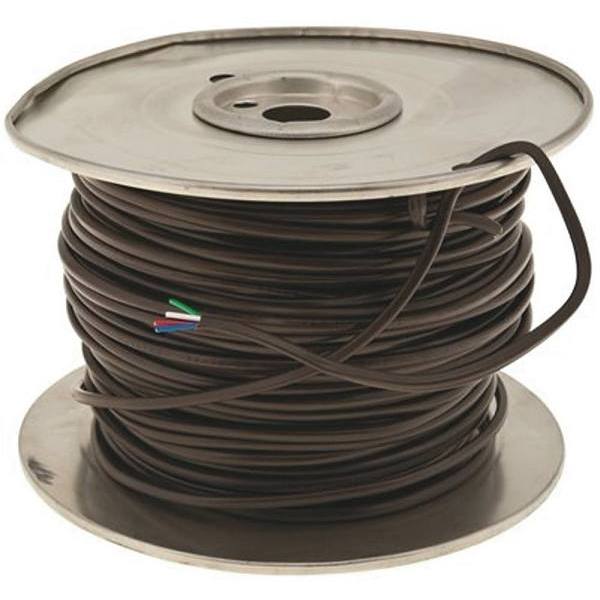

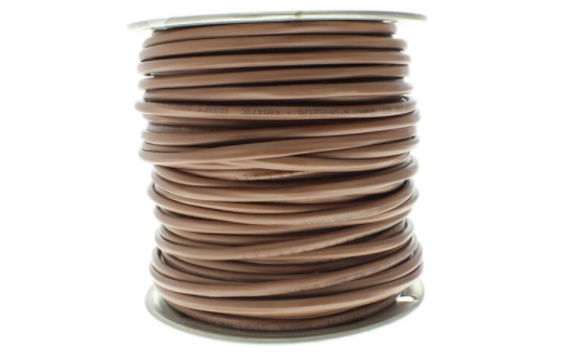

The Southwire 553100407 is a solid bare copper wire designed for HVAC applications. It is rated for 150 volts and is suitable for both indoor and outdoor use. This unshielded thermostat wire has a CL2/CMH classification, making it ideal for various heating and air conditioning controls.
- Voltage rating of 150 V per NEC Article 725
- ETL listed to UL 13 and UL 444 standards
- Meets UL 1581 Vertical Tray Flame Test (FT-1)
Product Highlights

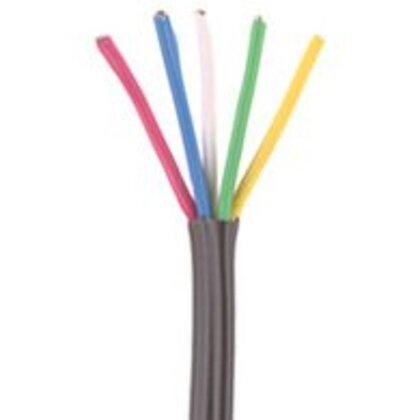

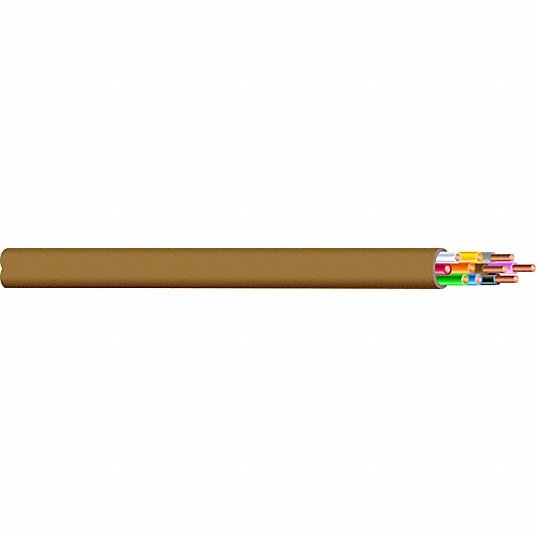

This wire is made from 18 AWG solid copper and features high-density polyethylene insulation with a brown PVC jacket. It performs well in both dry and non-air-circulating spaces.
Product Information
Standard Information
-
Brand: Southwire
-
MPN: 553100407
Technical Specifications
-
Conductor Size: 18 AWG
-
Conductor Number: 10
-
Conductor Strands: Solid
-
Diameter Over Conductor: 0.040 inches
-
Insulation Thickness: 5 mils
-
Jacket Thickness: 15 mils
-
Approx. OD: 0.238 inches
-
Copper Weight: 48 lbs/1000'
-
Approx. Weight: 58 lbs/1000'
-
DC Resistance at 25C: 6.669 ohms/1000'
-
AC Resistance at 75C: 8.035 ohms/1000'
-
Application: For non-air-circulating spaces in buildings
-
Insulation Material: PVC
-
Maximum Operating Temperature: 140 °F
-
Minimum Operating Temperature: -40 °F
-
Package Quantity: 1
-
Wire Length: 250 ft
-
Conductor Material: Copper
-
Sheath Color: Brown
