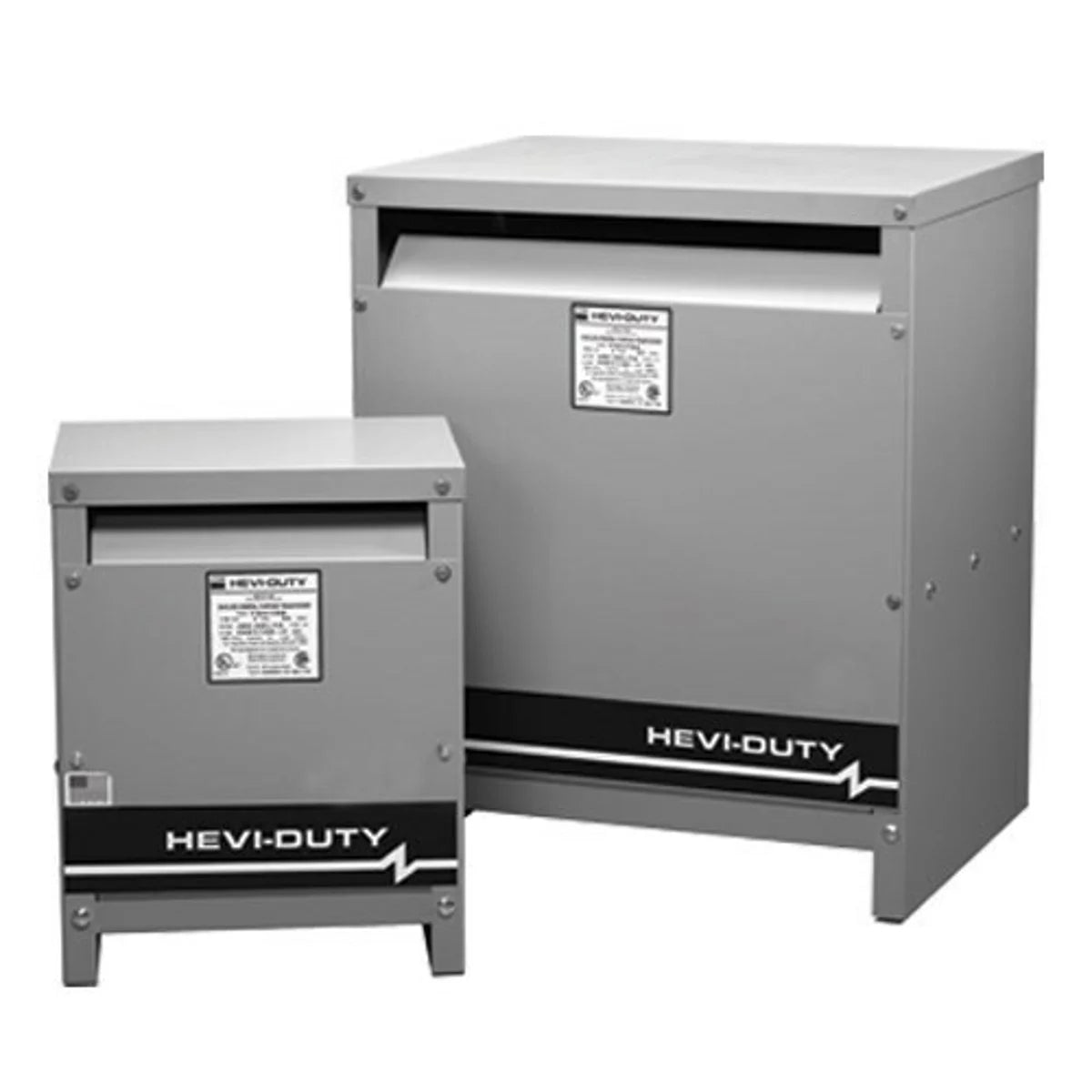

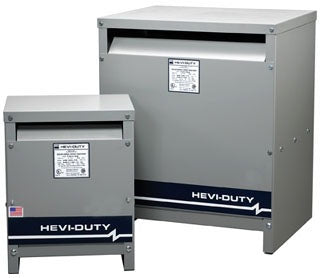

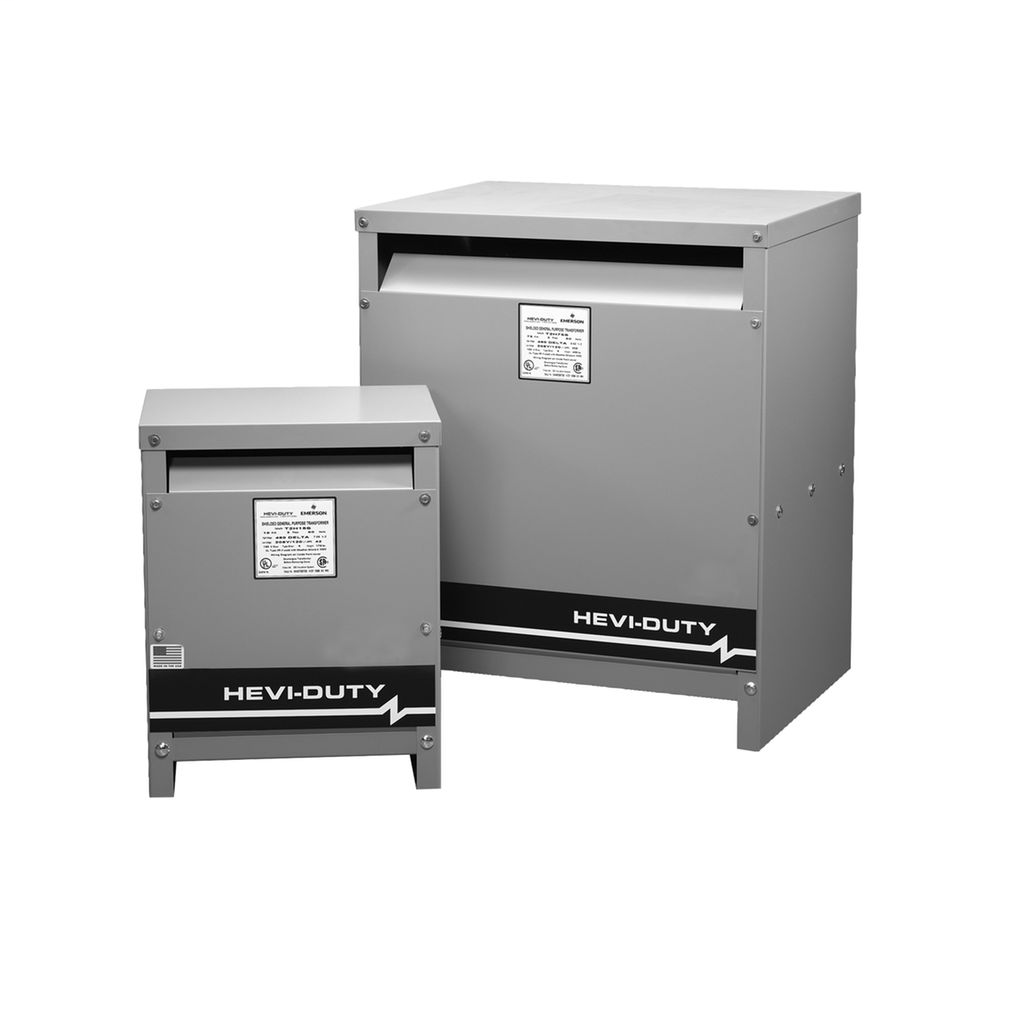

SolaHD ES5H25S 25 kVa 240 x 480 VAC Primary 120/240 VAC Secondary 1-Phase Dry Type Distribution Transformer

Product Description

The SolaHD ES5H25S is a 25 kVA dry type distribution transformer designed for 240 x 480 VAC primary and 120/240 VAC secondary voltages. It is ideal for both indoor and outdoor applications, classified as an isolation transformer with ventilated construction.

• Energy efficient design.
• NEMA 3R enclosure option available with weather shield.
• Suitable for single and three-phase applications.

Product Highlights

This transformer is built for versatility, catering to various voltage requirements in electrical circuits.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Sola Electric

Technical Specifications

• Power Rating: 25 kVA
• Primary Voltage: 240 x 480 VAC
• Secondary Voltage: 120/240 VAC
• Number of Phases: 1
• Temperature Rating: 150 DEG C Rise
• Enclosure Type: NEMA 3R with optional weather shield
• Dimensions: 16 inches x 16 inches x 28 inches
• Insulation Type: UL Class +220 DEG C
