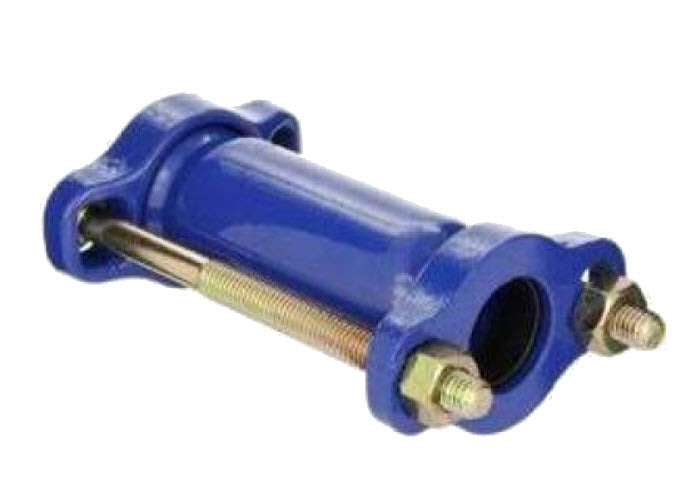

Smith-Blair 411-00016601-003 Straight Coupling 300 PSI (Pack of 1)

Product Description

Smith-Blair 411-00016601-003 is a straight coupling designed for joining plain end pipes without welding or special fittings. This coupling is made of carbon steel and features a Flexi-Coat fusion bonded epoxy finish for enhanced durability. The size of this coupling is one and one-fourth inches with an outer diameter of one point sixty-six inches and a length of five inches. It can withstand a pressure rating of three hundred PSI and can operate effectively in temperatures ranging from negative twenty to one hundred eighty degrees Fahrenheit.

• Capacity for angular deflection of seven degrees.
• Easy installation with no special pipe end preparation required.
• Resistant to vibrations and pipe fatigue.

Product Highlights

This coupling provides excellent performance for piping systems that require flexibility and robustness. It helps maintain system integrity under internal pressure and prevents leakage.

Product Information

Standard Information

• Brand: Smith-Blair
• MPN: 411-00016601-003

Technical Specifications

• Overall Length: 7 inches
• Material: Carbon Steel
• Pressure Rating: 300 PSI
• Temperature Rating: -20 to 180 degrees Fahrenheit
• Pipe Outer Diameter: 1.66 inches
• Sleeve Size: 5 inches length x 0.12 inches thickness
• Flange Outer Diameter: 4-9/16 inches
• Bolt Size: 2 (1/2 inch diameter x 7 inch length)
