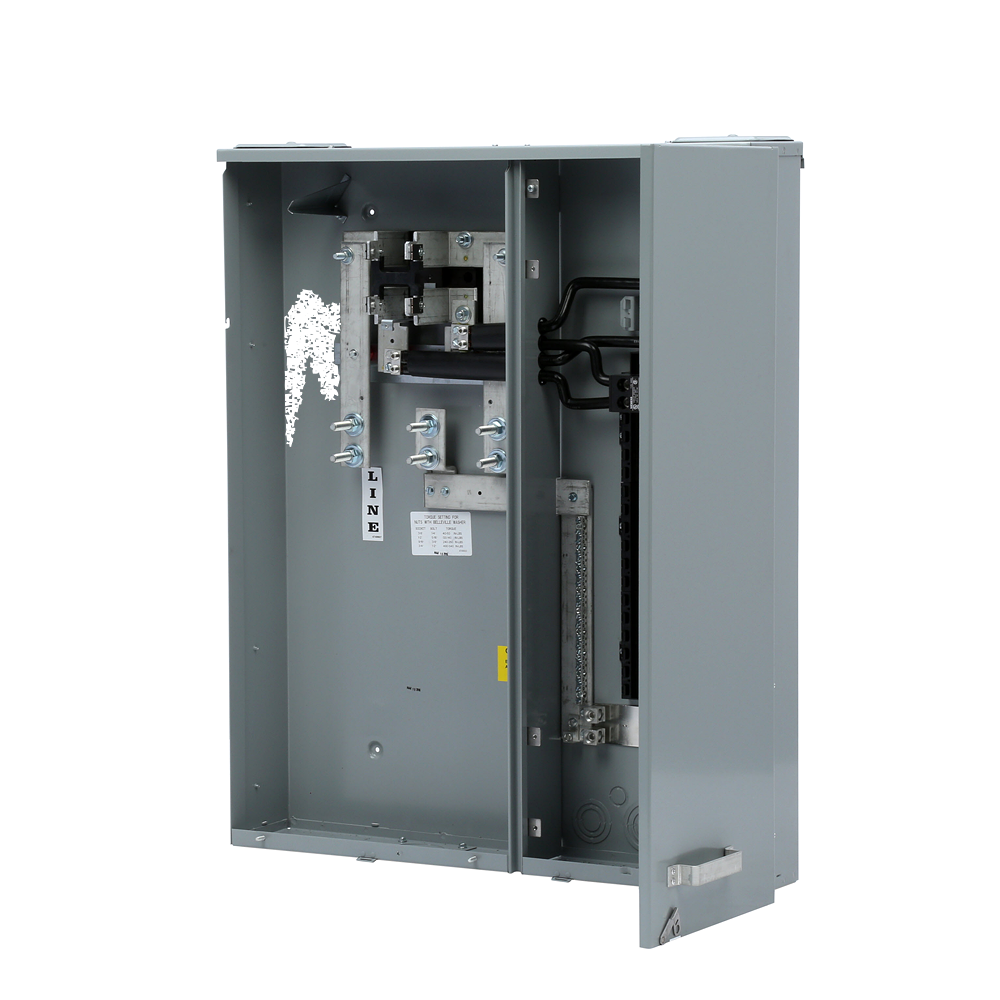

Siemens MC3042B1400SC 120/240 VAC 400 Amp 1-Phase 3-Wire Ring Type Combination Meter Load Center

Product Description

The Siemens MC3042B1400SC is a combination meter load center designed for 120/240 VAC systems. This product has a robust rating of 400 amps and is suitable for 1-phase and 3-wire applications. It features a factory-installed main breaker with thirty 1-inch spaces, allowing for a maximum of forty-two circuits. The design includes a four-jaw meter and offers options for overhead or underground feed along with surface mounting capabilities.

• Factory installed main breaker
• Supports up to 42 circuits
• Enclosure type: Ring

Product Highlights

This load center is ideal for service entrance equipment, providing reliable power distribution.

Product Information

Standard Information

• Brand: Siemens
• MPN: MC3042B1400SC

Technical Specifications

• Voltage: 120/240 Volt
• Amperage: 400 Amp
• Width: 34.000 inches
• Height: 8 inches
• Length: 43 inches
• Weight: 112.000 lb
• Enclosure: Ring
• Cable Entry: Top/Bottom
• Mounting Type: Surface
• Number of Phases: 1 Phase
• Country of Origin: Mexico
