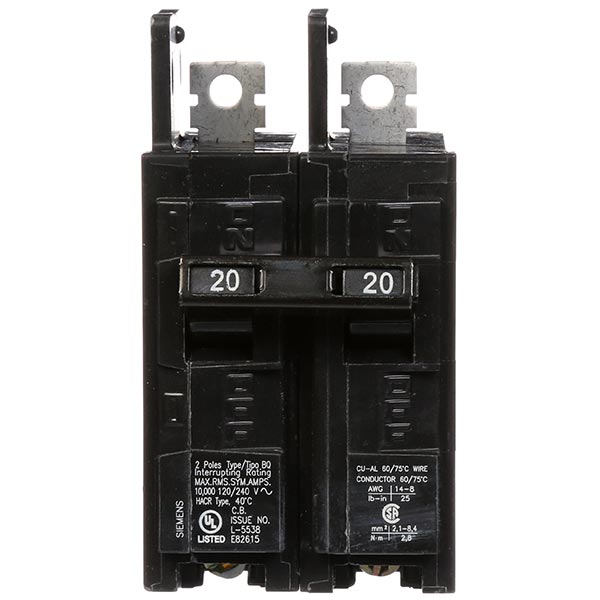

Siemens BQ2B020 Molded Case Circuit Breaker, Type BQ, Low Voltage, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles

Product Description

The Siemens BQ2B020 Molded Case Circuit Breaker is designed for low voltage applications. It operates at 120/240 VAC with a rating of 20 A and a ten kiloamp interrupt capacity. This circuit breaker features a thermal/magnetic trip mechanism and is suitable for a variety of electrical distribution settings.

• Suitable for panel mounting
• Supports wire sizes from fourteen to ten AWG copper and twelve to ten AWG aluminum
• Quickly resets after a trip without replacement needed

Product Highlights

This circuit breaker is ideal for professionals needing reliable electrical protection and control.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer Part No: BQ2B020

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA
• Frequency Rating: 60 Hz
• Number of Poles: 2
• Trip Type: Thermal/Magnetic
• Dimensions: 4 in L x 3 in W x 2 in H
• Connection Type: Bolt-On/Lug-In/Lug-Out
