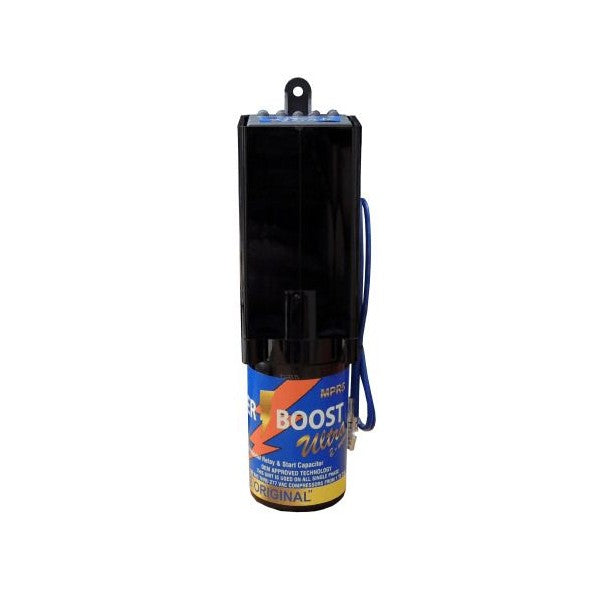

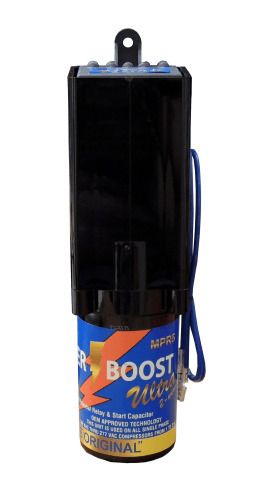

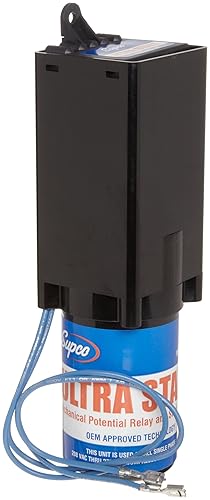

SEALED UNIT PARTS SUPCO MPR5 Ultra Start Series Hard Start 1 to 3 hp

Product Description

The Sealed Unit Parts Supco MPR5 is a hard start kit suitable for motors in the one to three horsepower range. It features a mechanical potential relay and a start capacitor, making it an excellent choice for efficient operation. The MPR5 is designed to be installed with two wires, simplifying the setup process. This kit is compatible with PSC and CSIR type compressors, ensuring broad applicability in HVAC systems.

• Features a mechanical potential relay for reliable operation.
• Easy installation with a two-wire connection.
• Designed for use with PSC and CSIR type compressors.

Product Highlights

The MPR5 ensures quick re-start capabilities, enhancing the performance of HVAC systems.

Product Information

Standard Information

• Operating Voltage: 208 to 277 VAC
• Recommended Range: 1 - 3 hp

Technical Specifications

• Capacitor Size: 189 to 227 uF
• Voltage Rating: 208/265V
• Temperature Range: -67 to 185 Deg F
• Weight: 1 pounds
• Dimensions: 2.5 inch W x 2.5 inch D x 8 inch H
