Product Description
The 3M Scotchlok MV10-14R/SX is an insulated standard ring terminal designed for conductors sized twelve to ten AWG. This component features a brazed seam barrel, ensuring a strong and secure electrical connection. It is equipped with a flared, vinyl sleeve that provides insulation and enhances crimping strength. The ring terminal is made from electrolytic copper, which is tin plated for resistance against corrosion. The product can handle temperatures ranging from negative forty to two hundred twenty-one degrees Fahrenheit.
Key Features:
- Yellow vinyl insulated for easy identification.
- Brazed seam barrel design ensures a secure fit.
- Funnel design enhances wire insertion.
Product Highlights
This terminal is suitable for various electrical applications requiring reliable connections. It is commonly used in wiring installations due to its effective insulation and strong mechanical support.
Product Information
Standard Information
-
Brand: Scotchlok
-
Manufacturer: 3M

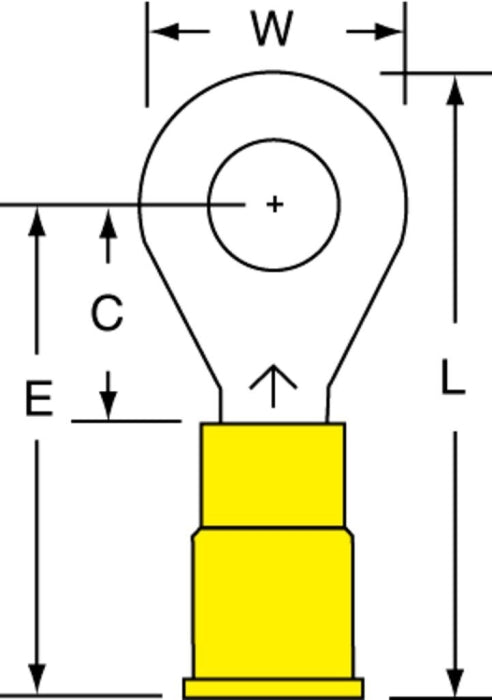

Technical Specifications
-
MPN: MV10-14R/SX
-
Terminal Size: 12 - 10 AWG
-
Length: 1.26 inches
-
Stud Size: 1/4 inches
-
Voltage Rating: 600 Volts
-
Max Insulation Diameter: 1/4 inches
-
Temperature Rating: -40 to 221 degrees Fahrenheit
-
Material: Copper, Vinyl insulation
