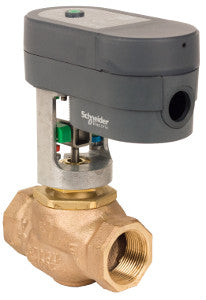

Schneider Electric VS-7213-112-4-04 SmartX Globe Valve Assembly 1/2 in 2-Way VS-7213-112-4-04

Product Description

Schneider Electric VS-7213-112-4-04 is a SmartX globe valve assembly designed for effective fluid control. This assembly is ideal for heating, cooling, and ventilation applications. It operates in a two-way configuration and is suitable for various HVAC systems.

• Body Size: 1/2 inch
• Connection Type: NPT
• Actuator Type: Electric

Product Highlights

This valve assembly features a modulating control signal for precise fluid flow regulation and a non-spring return design for reliable operation even during power loss.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Product Type: Valve-actuator assembly
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 219 PSI
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Force: 67 lbf
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Saturated Steam Temperature: -7 to 138 °C
• Seating Seal Material: PTFE
