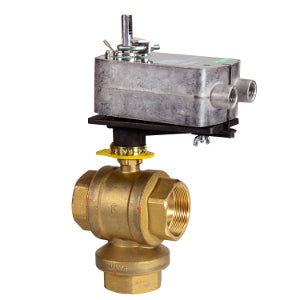

Schneider Electric VS-2313-526-9-55 Ball Valve Actuator Assembly

Product Description

Schneider Electric VS-2313-526-9-55 is a ball valve actuator assembly designed for efficient control of fluid flow. It features a size of one and one-half inches with three-way mixing capability and a brass body. The actuator operates electrically, utilizing a proportional control signal. This assembly is ideal for applications requiring reliable flow control without the risk of steam usage.

• Designed for mixing applications
• Suitable for 24 VAC or 22 to 30 VDC power input
• Features a spring return mechanism for improved safety

Product Highlights

This valve assembly is built to meet demanding operational requirements with high torque performance and a robust construction, making it efficient for various industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 1-1/2 in
• Configuration: 3-Way Mixing
• Flow Coefficient: 32 cv
• Close-Off Pressure: 40 PSI
• Actuator Type: Electric
• Control Signal: Proportional (2 to 10 VDC, 4 to 20 mAdc)
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Temperature: -7 to 121 °C
• Ambient Air Temp. for Operation: -30 to 60 °C
• Ambient Air Temp. for Storage: -40 to 71 °C
• Material: Forged brass
• Electrical Insulation Class: Class II
