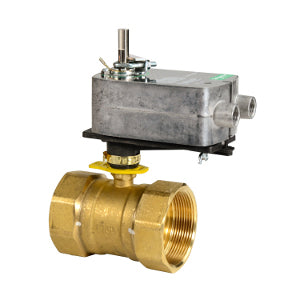

Schneider Electric VS-2253-506-9-61 Valve Actuator Assembly 2 in

Product Description

The Schneider Electric VS-2253-506-9-61 is a valve actuator assembly designed for reliable operation in HVAC systems. This unit features a two-inch body size and a ball valve configuration. It connects with NPT fittings and has a body made of stainless steel. The flow coefficient is rated at 41.7 cv, making it suitable for various fluid handling tasks.

• Electric actuator type
• Control signal range from 0 to 10 VDC
• Torque rating of 70 in-lb

Product Highlights

This valve assembly is ideal for controlling fluid flow in heating and cooling systems. It is not compatible with steam applications. The electrical input is 24 VAC, ensuring efficient operation. The actuator provides a rotary mechanical movement for precise control.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: VS-2253-506-9-61

Technical Specifications

• Valve Body Size: 2 in
• Configuration: 2-Way
• Flow Coefficient: 41.7 cv
• Close-Off Pressure: 70 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC
• Torque: 70 in-lb
• Protection Rating: NEMA 2
