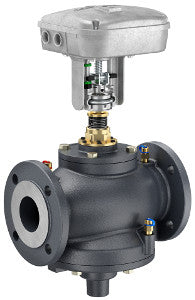

Schneider Electric VP220A-100S-165-U334 Valve Actuator Assembly 24 V AC/DC

Product Description

The Schneider Electric VP220A-100S-165-U334 is a valve actuator assembly designed for pressure-independent control applications. This product integrates a PIBCV assembly and an MP500C-SRD-W proportional spring return actuator. It supports a flow rate of one hundred sixty-five gallons per minute and connects easily with flanged fittings.

• Body Size: Four inches.
• Configuration: Two-way operation.
• Protection Rating: IP65 for durability.

Product Highlights

Ideal for HVAC systems, this assembly provides reliable performance and control in applications such as air handling and fan coil units.

Product Information

Standard Information

• Country of Origin: North America.
• Product Type: Valve-actuator assembly.

Technical Specifications

• Power Input Voltage: Twenty-four VAC or VDC.
• Flow Rate: One hundred sixty-five gallons per minute.
• Close-Off Pressure: Two hundred thirty-two PSI.
• Control Signal: Proportional, ranging from zero to ten VDC or four to twenty mA DC.
• Operating Fluid Temperature: Minus ten to one hundred twenty degrees Celsius.
• Auxiliary Switch: Available as an accessory.
• Body Material: Grey cast iron GG-25.
• Spring Return Type: Normally closed configuration.
