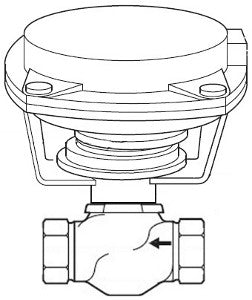

Schneider Electric VK-7213-301-4-09 Valve Actuator Assembly 2-Way Globe Valve

Product Description

Schneider Electric VK-7213-301-4-09 is a valve actuator assembly designed for effective control of fluid flow. This assembly includes a globe valve suitable for various applications. It includes a 1-1/4 inch body size and operates on a pneumatic actuator with a control signal that can switch between two positions or provide proportional control.

• Body Size: 1-1/4 inches
• Flow Coefficient: 20 cv
• Close-Off Pressure: 20 PSI

Product Highlights

This assembly is suitable for North American applications. It features a straightway body pattern and is made from durable materials, ensuring reliability in operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Actuator Type: Pneumatic
• Control Signal: 2-Position, Proportional
• Close-off Pressure: 20 PSI
• Control Spring Range: 3 to 6 PSIG
• Leads and Connections: 1/8 inch Air NPT
• Material Trim: Brass
• Protection Rating: NEMA 1
