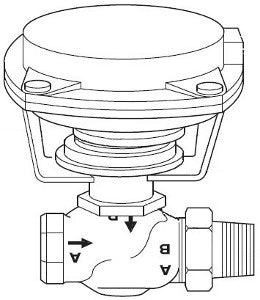

Schneider Electric VK-7211-302-4-02 Globe Valve Assembly 1/2 in NPT

Product Description

The Schneider Electric VK-7211-302-4-02 is a globe valve assembly designed for effective fluid control in various applications. This valve is suitable for a range of pneumatic systems and is rated for a close-off pressure of one hundred twenty PSI. It features a straightway body pattern and comes with a two-way configuration, making it versatile for different plumbing needs.

• Body Size: 1/2 inches
• Flow Coefficient: 1.3 cv
• Control Signal: 2-Position and Proportional

Product Highlights

Efficient for fluid regulation and designed for straightforward installation, this valve assembly connects with NPT threads and operates smoothly under a temperature range of negative seven to one hundred thirty-eight degrees Celsius.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Pneumatic
• Material Trim: Brass
• Seating Seal Material: PTFE
• Body Material: Bronze
• Mechanical Movement: Linear
• Ambient Air Temperature for Operation: Negative twenty-eight point eight to one hundred four point four degrees Celsius
• Pressure Rating: Close-Off Pressure is one hundred twenty PSI
• Connection: 1/8 inch Air NPT
