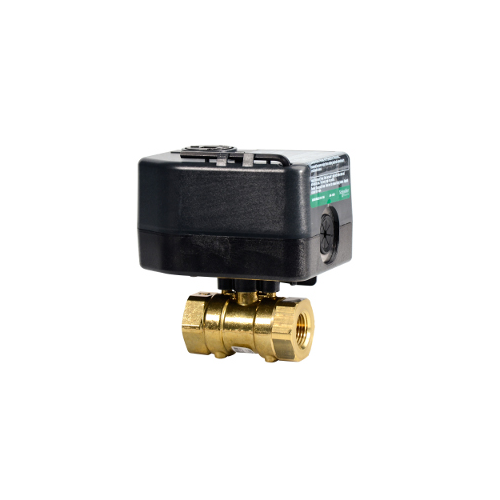

Schneider Electric VBS2N17+M220A02 Ball Valve Assembly 3/4 in 2-Way Replacement MPN

Product Description

The Schneider Electric VBS2N17+M220A02 is a durable ball valve assembly designed for efficient control of fluid flow. This assembly features a three-quarter inch body size and operates as a two-way valve. It is specifically built with stainless trim and boasts a flow coefficient of ten Cv. The valve can handle a close-off pressure of one hundred thirty psi, making it suitable for various applications in HVAC and plumbing systems. The actuator is powered by a twenty-four VAC input, with a spring return mechanism that ensures the valve closes automatically during a power loss.

• Body Size: Three-quarter inch
• Configuration: Two-way
• Type: Ball

Product Highlights

This valve assembly is ideal for both residential and commercial plumbing needs, ensuring reliable performance in managing liquid flow within various systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Valve Body: VBS2N17
• Actuator: M220A02
• Power Input Voltage: 24 VAC
• Close-Off Pressure: 130 PSI
• Flow Coefficient: 10 Cv
• Control Signal: 2-Position (On/Off)
• Protection Rating: NEMA 2
• Mechanical Movement: Rotary
