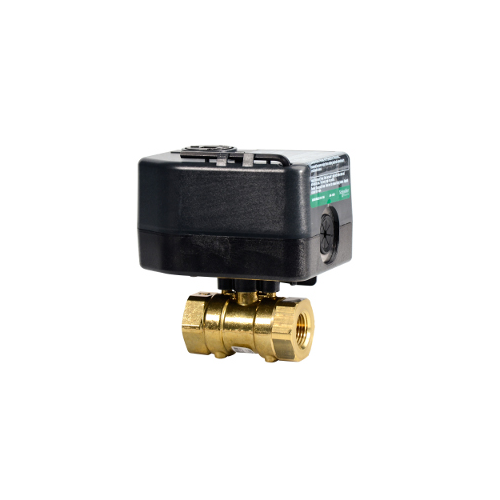

Schneider Electric VBS2N03+M210A00 SpaceLogic Ball Valve Assembly 1/2 2-Way VBS2N03+M210A00

Product Description

Schneider Electric VBS2N03+M210A00 is a space logic ball valve assembly. This valve assembly features a half-inch body size and is designed for two-way operation. The construction consists of a stainless steel trim and operates effectively under various conditions. It accommodates a flow coefficient of 2.1 Cv and can handle a close-off pressure of 130 psi.

• Body size of half an inch
• Electric actuator with spring return functionality
• Not suitable for steam applications

Product Highlights

This valve assembly provides a reliable solution for various applications, including HVAC control. It utilizes a 24 VAC input power and operates with a two-position control signal.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Forged brass
• Material Trim: Stainless steel
• Flow Coefficient: 2.1 Cv
• Close-Off Pressure: 130 psi
• Power Input Voltage: 24 VAC
• Ambient Air Temperature for Operation: 0-76.1 °C
• Ambient Air Temperature for Storage: -40-76 °C
• Protection Rating: NEMA 2
• Valve Connection Type: NPT
• Actuator Type: Electric rotary
