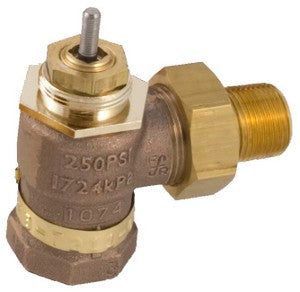

Schneider Electric VB-7211-0-3-09 Globe Valve 2-Way 1-1/4 in

Product Description

Schneider Electric's VB-7211-0-3-09 is a 2-way globe valve designed for various applications. This valve features a one and one-quarter inch body size and an angle configuration. It uses a union-NPT connection and is constructed with brass material. The product line is part of Schneider Electric's Venta range.

• Body Size: 1-1/4 inches
• Configuration: 2-Way
• Connection Type: Union-NPT

Product Highlights

This valve is suitable for controlling media such as glycol, steam, and water. Its flow coefficient is twenty-two cv, making it effective for a range of fluid handling tasks.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Type: Globe
• Body Pattern: Angle
• Material Trim: Brass
• Flow Coefficient: 22 cv
• Control Media: Glycol 25 to 60%, Steam, Water
• Operating Fluid Temperature: -7 to 138 °C
• Saturated Steam Temperature: -7 to 138 °C
• Seat Material: Bronze
