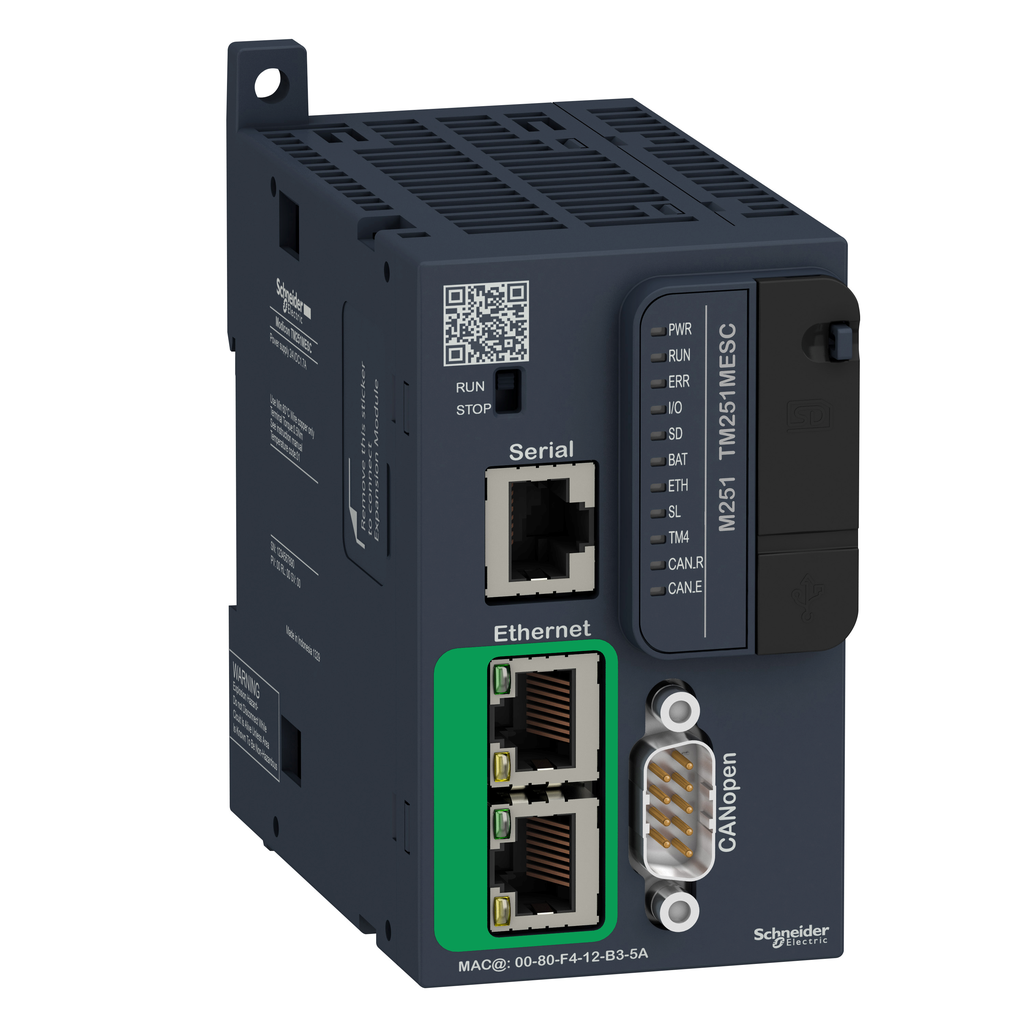

Schneider Electric TM251MESC logic controller, Mod, 24V DC

Product Description

Schneider Electric TM251MESC is a modular logic controller designed for efficient operation in industrial environments. This unit is a part of the Modicon M251 series, suitable for both modular and distributed architecture setups. It features seven local and fourteen remote I/O expansion modules for versatile connectivity. The controller operates at a rated supply voltage of twenty-four volts DC with an inrush current of fifty amps. The power consumption ranges from thirty-two point six to forty point four watts.

This controller allows for robust data transfer through an SD card, embedded web capabilities, and FTP server access. Integrated ports include a mini B USB 2.0 connector, RS232/RS485 interface, dual-port Ethernet, and a dual-port CANopen J1939 interface. The onboard memory includes eight megabytes for programs, sixty-four megabytes RAM, and one hundred twenty-eight megabytes built-in flash memory, plus a thirty-two gigabyte capacity for SD card storage.

With an IP20 rating, the dimensions are fifty-four millimeters in width, ninety-five millimeters in depth, and ninety millimeters in height, weighing zero point two two kilograms. The Modicon M251 controllers are tailored for high-performance machines with speed and position control functionalities. Compliance includes certifications from CE, CSA, and CULus, meeting numerous industry standards. This unit supports DIN rail mounting.

• Modicon M251 series logic controller with modular design
• 24V DC supply voltage with extensive connectivity options
• Compatible with various programming environments using SoMachine software

Product Highlights

Achieve excellent performance in automation tasks with the Schneider Electric TM251MESC logic controller.

Product Information

Standard Information

• Catalog Number: TM251MESC
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Logic Controller
• Power Supply: 24V DC
• Memory: 64MB RAM, 8MB Program Memory
• Dimensions: 54mm (W) x 95mm (D) x 90mm (H)
• Weight: 0.22kg
• Connections: USB, Ethernet, CANopen J1939
• Certifications: CE, CSA, UL 508, UL 1604
• Country of Origin: United States
