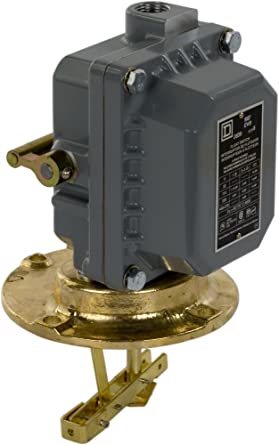

Schneider Electric Square D 9037EW9 Float Switch Liquid Level Control 600VAC

Product Description

The Schneider Electric Square D 9037EW9 Float Switch is engineered for accurate and reliable liquid level monitoring. Ideal for a range of industrial and commercial settings, this switch ensures optimal performance even in complex applications.

• Robust aluminum body withstands demanding environments.
• DPST contact form with a capability of handling up to 600VAC.
• Features a close-on-rise function providing efficient operation.

Product Highlights

Equipped with a float travel of 2 1/16 inches and a vertical open tank mounting, it is designed for easy installation and maintenance. The Schneider Electric model also boasts NEMA 4 rating, confirming its durability and suitability for outdoor use.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• MPN: 9037EW9

Technical Specifications

• Operating Temperature Range: -22 to 220 degrees Fahrenheit
• Conduit Size: 3/4 inches
• HP Ratings: 2 hp at 120V, 3 hp at 240V, 5 hp at 3 Phase - 240V
• Max. Current/Voltage: 600 A/600 V
• Body Material: Aluminum
• Float Position: Below
• Tank Connection Size: 5-1/8 inches
• Standards: CSA, UL
