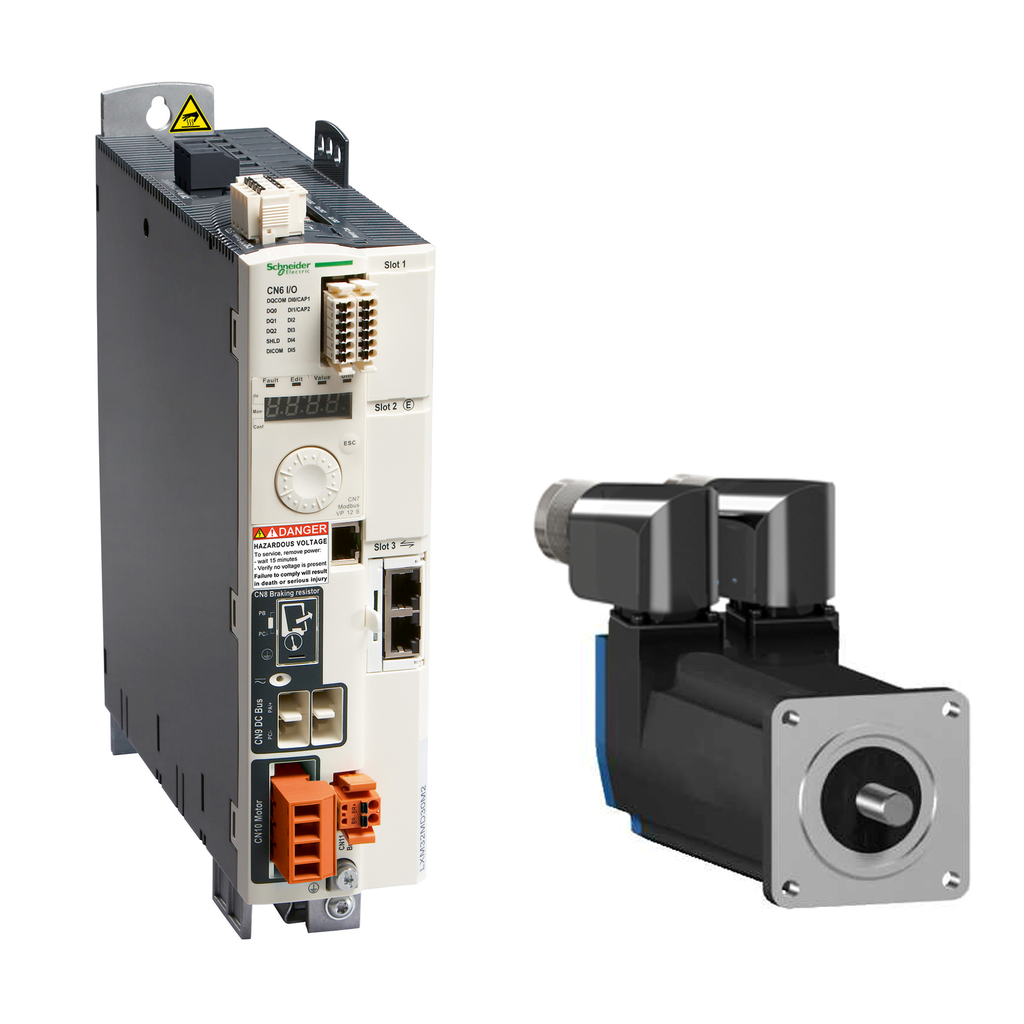

Schneider Electric LXM32SU90M2 motion servo drive 3A (1 Phase)

Product Description

The Schneider Electric LXM32SU90M2 is a motion servo drive that is part of the Lexium 32 range. This drive supports a power range from 0.15kW to 7kW. It features an integrated EMC filter, and it includes two discrete inputs and three discrete outputs. The device operates on a rated supply voltage of 100V to 120V or 200V to 240V. The continuous output is three amperes at eight kHz and the continuous power output is 300 watts at 115V.

This product is equipped with an RJ45 connector for Modbus communication. It ensures electrical isolation between power and control lines. The LXM32SU90M2 offers both Modbus and SERCOS III communication interfaces and is rated IP20. Its physical dimensions are sixty-eight millimeters in width, two hundred thirty-seven millimeters in depth, and two hundred seventy millimeters in height, with a weight of one point eight kilograms. The drive complies with CSA certification and meets EN/IEC 61800-3 standards. Additionally, it is compatible with the BSH series servo motors.

• Compatible with BSH servo motors
• Provides electrical isolation for safety
• Multiple communication protocols supported

Product Highlights

This motion servo drive offers flexibility and reliability for various control applications in industrial settings.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Warranty: Eighteen months

Technical Specifications

• Catalog Number: LXM32SU90M2
• Supply Voltage: 100V to 120V / 200V to 240V
• Continuous Output Current: 3A
• Continuous Power: 300W at 115V
• Weight: 1.8kg
• Dimensions: 68mm x 237mm x 270mm
• Certification: CSA
• IP Rating: IP20
