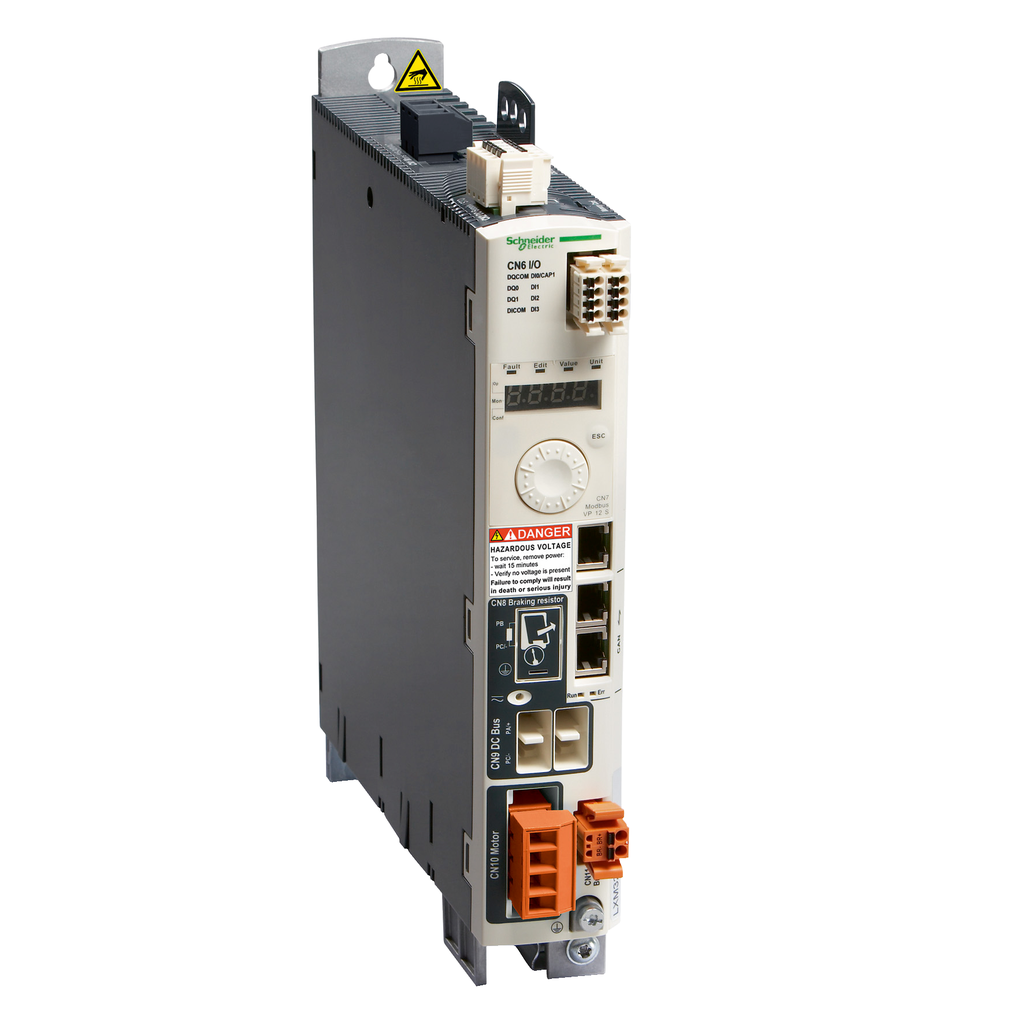

Schneider Electric LXM32AD72N4 motion servo drive 0.4kW 3 phase

Product Description

Schneider Electric offers the LXM32AD72N4 motion servo drive as part of its Lexium 32 range. This AC motion servo drive is designed for one axis and operates within a power range suitable for machines between 0.15kW and 7kW. It has an integrated EMC filter and provides analogue inputs with a pulse train output.

• Compact design saves cabinet space.
• Compatible with BMH and BSH servo motors.
• Continuous power output of 13000W at 400V.

Product Highlights

This servo drive operates on a supply voltage of 200V to 240V or 380V to 480V and provides a continuous output current of 24A at a frequency of 8kHz. It includes RJ45 connectors for CANmotion, CANopen, and Modbus integration, ensuring versatile communication options.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: LXM32AD72N4
• Supply Voltage: 200V - 240V, 380V - 480V
• Dimensions: 108 mm (Width) x 237 mm (Depth) x 270 mm (Height)
• Weight: 4.8 kg
• Input/Output: 1 capture, 2 safety, 4 logic discrete inputs, 2 discrete outputs
• Protection Rating: IP20
• Certifications: CE, CSA, RoHS, TUV, UL
• Warranty: 18 months
