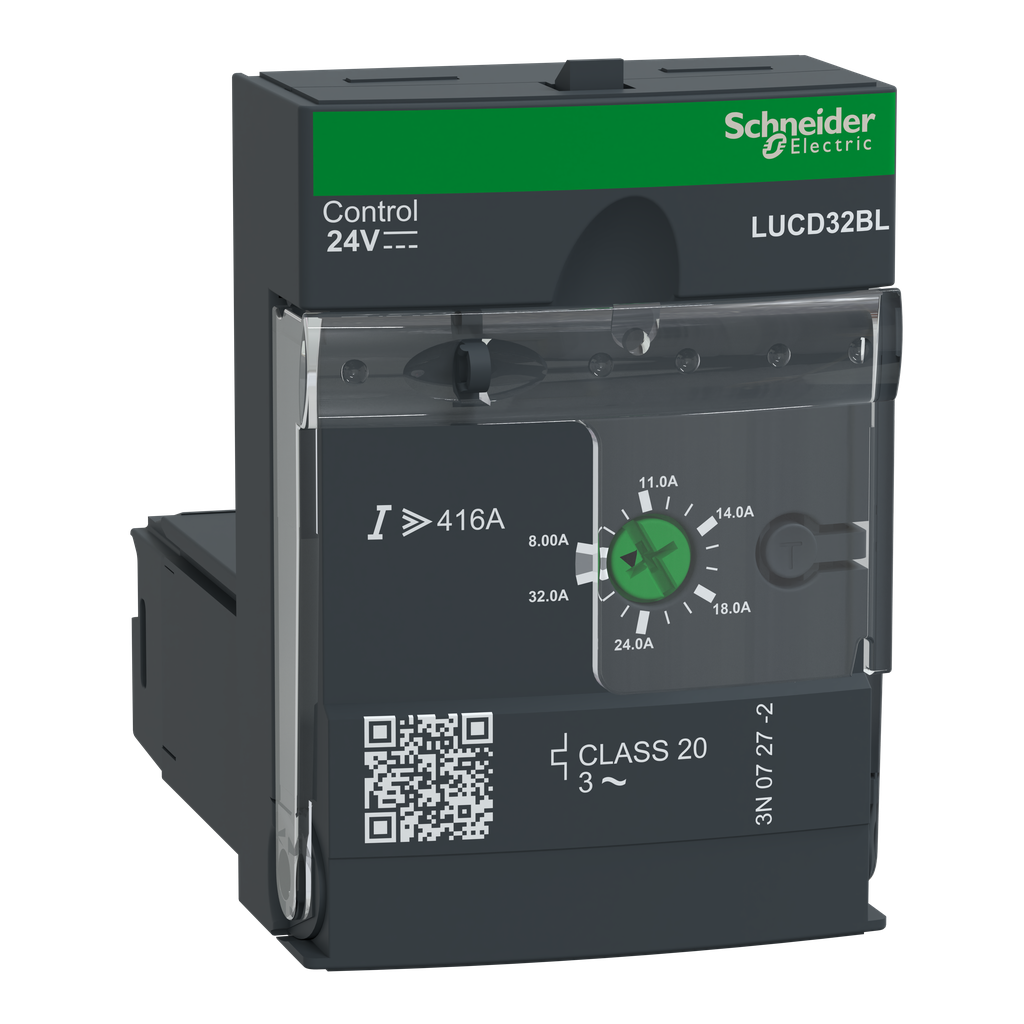

Schneider Electric LUCD32BL Square D 24 VDC 8 to 32 Amp 3-Phase Class 20 Thermal Motor Starter

Product Description

The Schneider Electric LUCD32BL is a control and diagnostic unit designed for advanced power bases LUB320 and LUB380. This unit forms a TeSys U starter controller suitable for three-phase motor applications up to fifteen kilowatts at four hundred volts. The rated current is adjustable between eight and thirty-two amps, providing reliable overload protection with a class twenty trip function and short-circuit protection. It handles faults due to phase loss or insulation failure, limiting damage to equipment.

Additionally, this unit features a thermal overload alarm, which can be activated locally using a LUFDA module or remotely via a LULC module. A test push button is included for overload simulation. The control voltage required for this unit is twenty-four volts DC, connected through A1/A2 control terminals located in the power base. Compliance certifications include IEC, UL, CSA, CCC, EAC, and Marine standards, making it a versatile choice for industrial applications.

• Compatible with LUB320 and LUB380 power bases.
• Adjustable overload tripping class 20 and thermal protection.
• Certified for multiple international standards.

Product Highlights

The Schneider Electric LUCD32BL is an advanced control unit that effectively manages three-phase motor applications while offering comprehensive protection and diagnostics.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: LUCD32BL
• Voltage: 690 Volt
• Power Supply: 24 VDC
• Operating Temperature: -25 to 70 degrees C
• Storage Temperature: -40 to 85 degrees C
• Height: 66 mm
• Width: 45 mm
• Depth: 60 mm
• Warranty Length: 18 months
• Country of Origin: France
• GTIN: 03389110364842
• Certifications: CSA, UL, CE, ATEX, EAC
