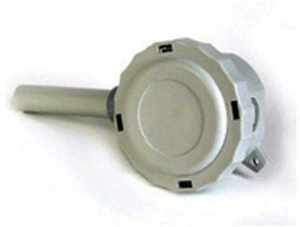

Schneider Electric ETO800 Temperature Sensor Power Outside Air Replacement MPN

Product Description

The Schneider Electric ETO800 is a reliable temperature sensor designed for outdoor air applications. This sensor features a 10K Ohm thermistor with an 11K shunt. It provides accurate readings with a tolerance of +/- 0.2 degrees Celsius. The device operates effectively in a range from -40 degrees Fahrenheit to 302 degrees Fahrenheit.

• Designed for outdoor air measurement
• Compatible with I/A systems
• Temperature measurement range: -40 to 150 degrees Celsius

Product Highlights

This temperature sensor offers high accuracy and interchangeability across a wide range. It is suitable for HVAC applications and facilitates effective temperature management.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: ETO800
• Sensor Type: Temperature sensor with 10 kOhm thermistor
• Accuracy: +/- 0.2 C
• Operating Temperature Range: -40 to 150 C

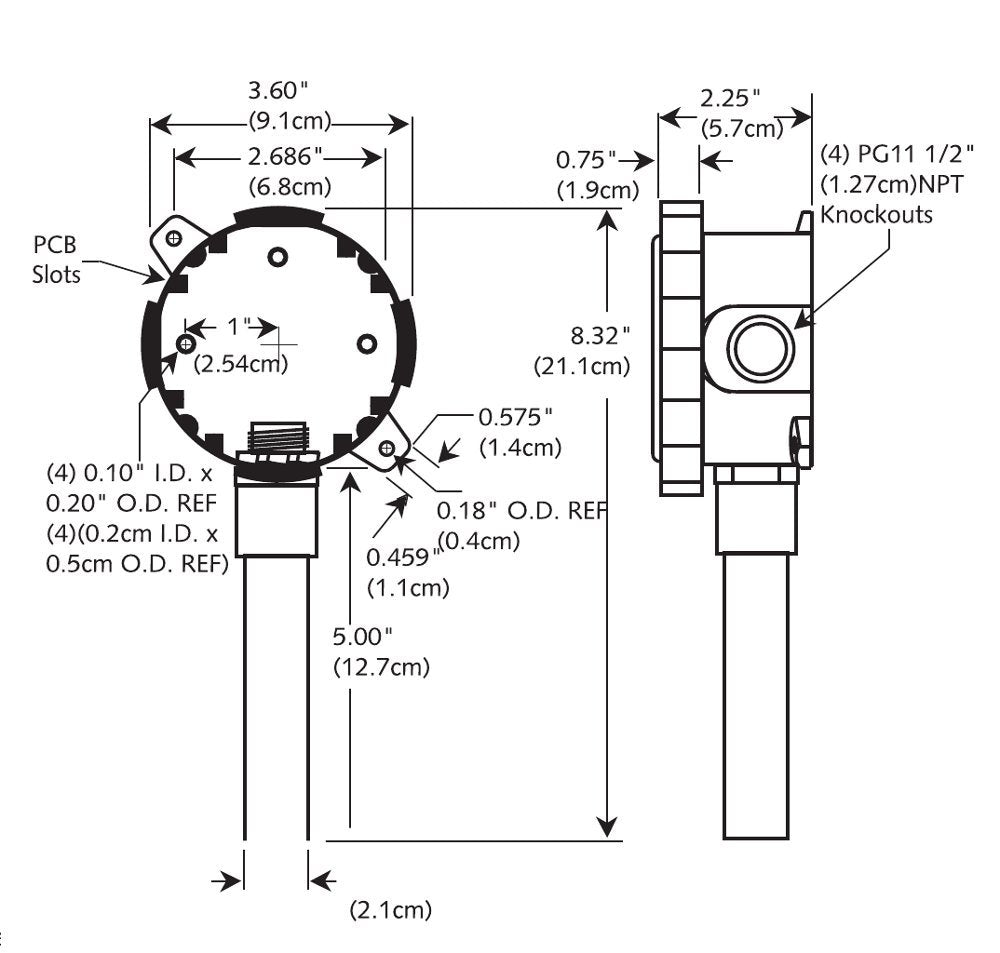

• Dimensions: Width 91 mm, Height 57 mm, Depth 57 mm
• Material: ABS thermoplastic
• Humidity Measurement Range: 0-90 % I/A
• Weight: Not specified
