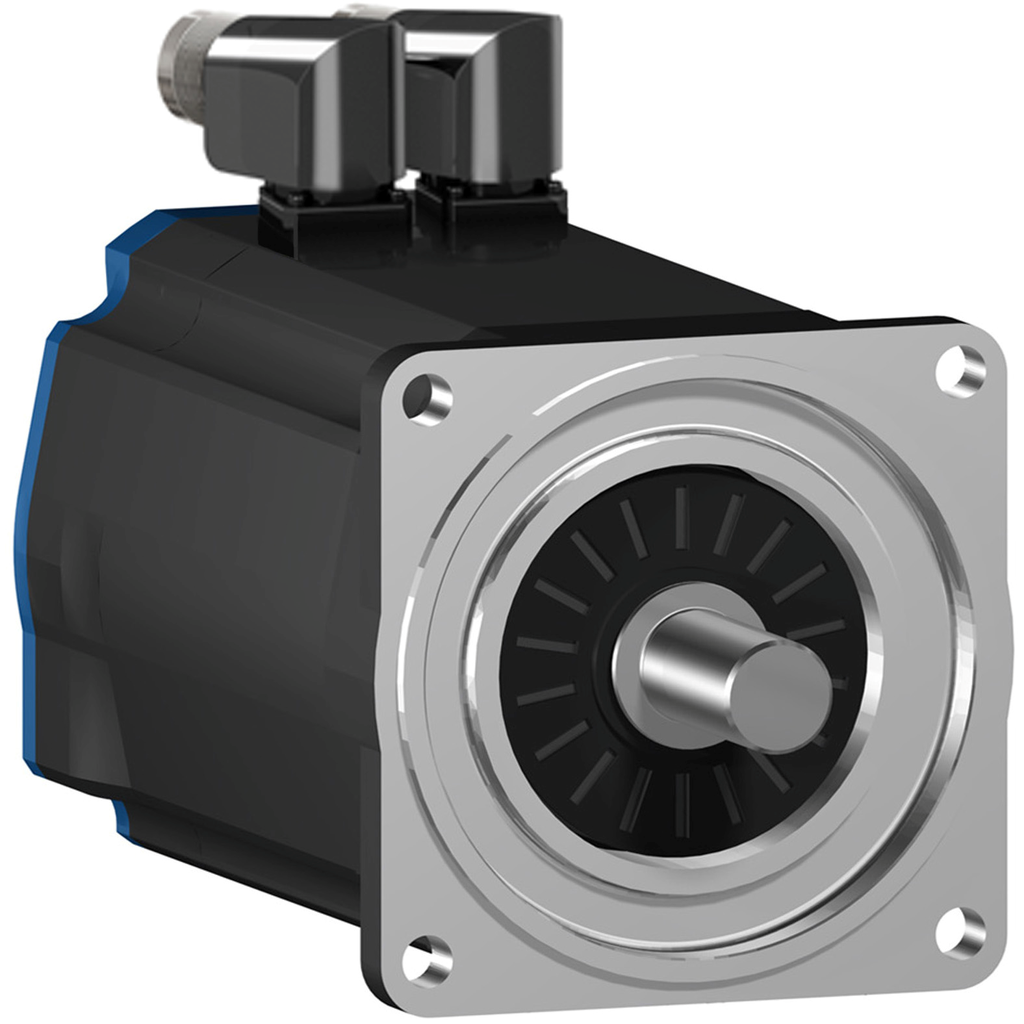

Schneider Electric BSH1003P32A2A SQUARED servo motor B 480V

Product Description

Schneider Electric offers the BSH1003P32A2A servo motor as part of the Lexium 32 & Motors range. This motor features an eight-pole AC design and operates at a maximum speed of six thousand RPM. It has a keyed shaft and does not include a holding brake. The motor is equipped with a multi-turn SinCos absolute encoder for precise positioning, providing a resolution of one hundred thirty-one thousand seventy-two points per turn over four thousand ninety-six turns.

• IP65 and IP67 rated for robust durability.
• Compatible with Lexium 32, Lexium 15, and Lexium 05 servo drives.
• Weighs seven point four kilograms.

Product Highlights

This servo motor is ideal for applications requiring high precision and reliability. It supports standard flange mounts and is suitable for various industrial automation tasks.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Supply Voltage: 480V
• Continuous Stall Current: 6.6A
• Maximum Continuous Power: 3.14W
• Shaft Size: 19mm x 40mm
• Length: 240.5mm
• Centering Collar Dimensions: 3.5mm x 95mm
• Mounting Hole Size: 115mm
• Country of Origin: United States
