Schneider Electric BMXDDO1602H Square D Discrete Output Module 0.5 Amp 24V DC

Product Description

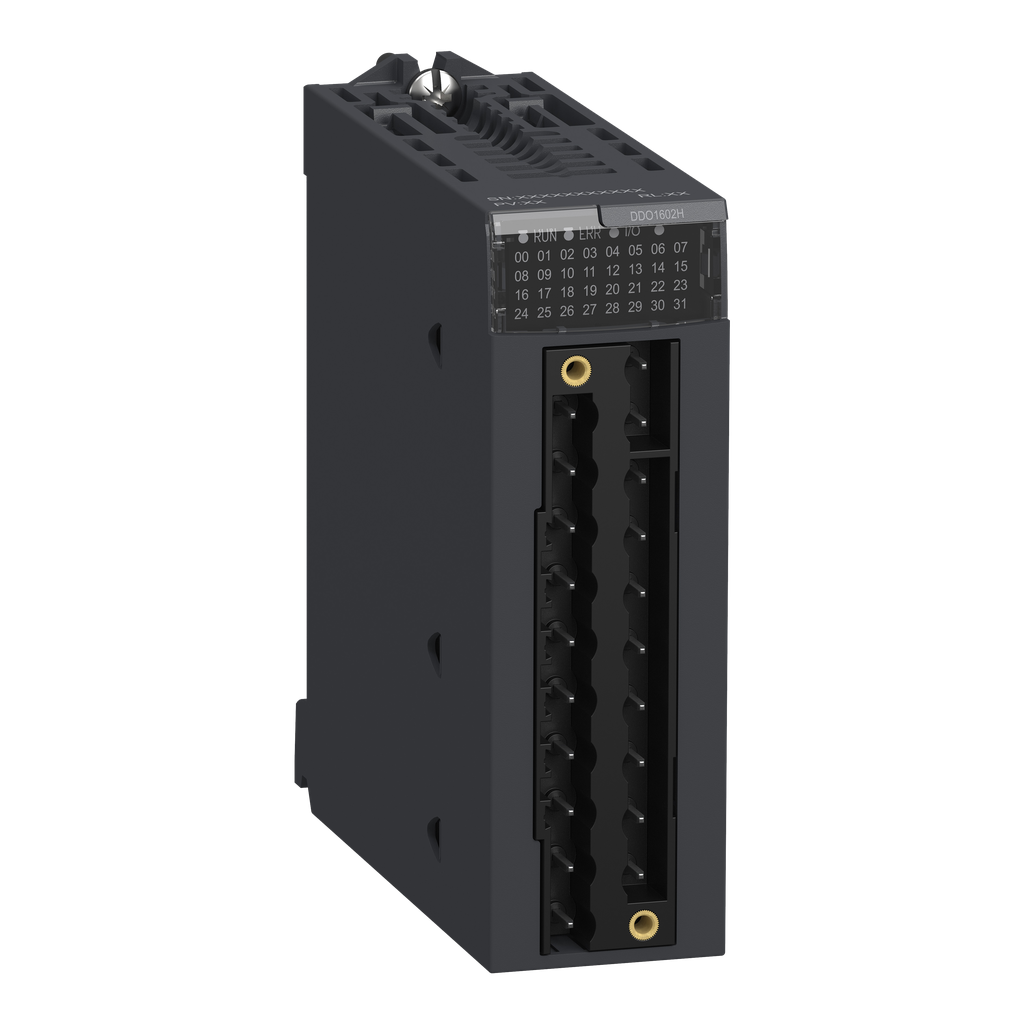

The Schneider Electric BMXDDO1602H is a discrete output module designed for the Modicon X80 range, compatible with Modicon M580 and M340 Programmable Automation Controllers. This module provides 16 outputs using sink (positive) logic. It operates at an output voltage of twenty-four volts, compatible with voltages between nineteen and thirty DC. The module supports a maximum power dissipation of four watts, consuming typical currents of seventy-nine mA at three point three volts and zero point six amps per channel.

This unit can withstand harsh environments, functioning within an extended temperature range from minus twenty-five degrees Celsius to plus seventy degrees Celsius. Protection features include reverse polarity, external short-circuit, overload, and overvoltage protections. The BMXDDO1602H boasts a mean time between failures (MTBF) of three hundred ninety-two thousand two hundred eighty-five hours, with an IP20 rating, indicating its suitability for medium to large process applications. This module is certified by multiple standards such as IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE, and UL, and meets EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.

• Compatible with Modicon M580 and M340 PACs
• Ideal for severe environments
• Robust protection features

Product Highlights

This discrete output module is essential for robust automation solutions, providing reliable performance in challenging settings.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: BMXDDO1602H

Technical Specifications

• Weight: 0.12 kg
• Operating Temperature: -25 to +70 degrees C
• Output Voltage: 24V, 19 to 30V DC
• MTBF: 392285 hours
• Protection: IP20 rated
• Certifications: CE, RCM, IEC-Ex, Merchant Navy, CSA, ATEX, UL
• Warranty Length: 18 months
• Country of Origin: Indonesia
