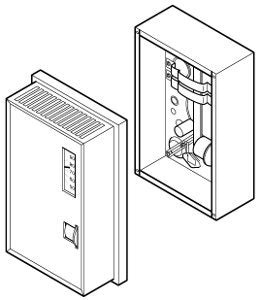

Schneider Electric TK-1201 Pneumatic Room Thermostat Two-Pipe Heating-Cooling 55 Degree to 85 Degree F Dial Range 15 psi Ra 20 psi Da Supply Air Pressure

Product Description

The Schneider Electric TK-1201 is a pneumatic room thermostat designed for both heating and cooling applications in commercial and industrial settings. With a temperature control range from 55 degrees to 85 degrees Fahrenheit, this two-pipe thermostat delivers precise temperature regulation.

• Direct and reverse acting
• Durable construction
• Easy installation

Product Highlights

This thermostat is suitable for HVAC systems and can be mounted on a wall, duct, or equipment. It features 5/32 inch plastic tubing connections and operates with 20 psi direct acting and 15 psi reverse acting air pressure. The Schneider Electric TK-1201 is built to ensure reliability and accurate temperature control in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: TK-1201
• Control Range: 55 - 85 degrees Fahrenheit

Technical Specifications

• Action: Direct Acting, Reverse Acting
• Air Flow: 0.008 scfm
• Setpoint: 75 degrees Fahrenheit
• Air Pressure: 20 psi Direct Acting, 15 psi Reverse Acting
• Temperature Control Range: 55 to 85 degrees Fahrenheit
• Throttling Range: 2 to 10 degrees Fahrenheit Adjustable, 4 degrees Fahrenheit Factory Set
• Air Connection: 5/32 inch Plastic Tubing
• Number of Pipes: 2
