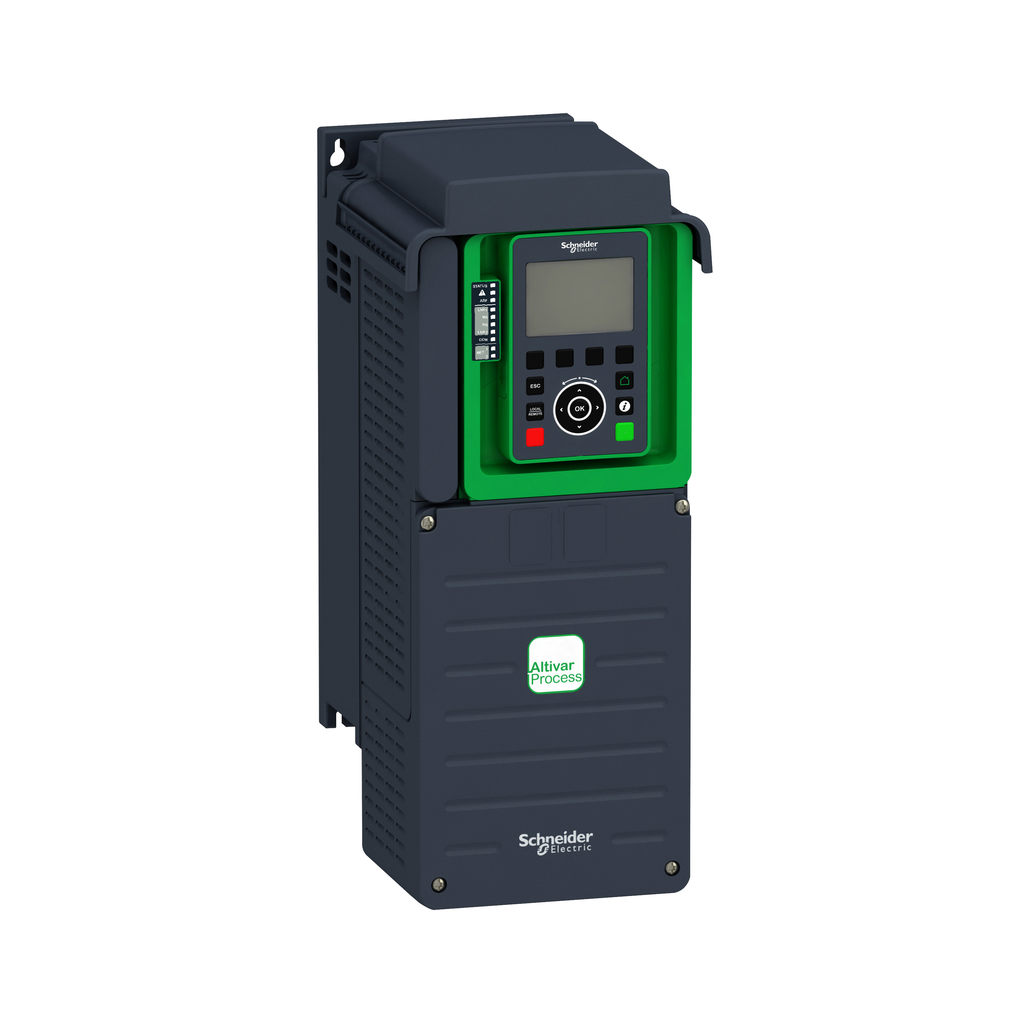

Schneider Electric ATV930D11N4 SQD ATV930D11N4 variable speed drive 11kW 400 to 480V with braking unit

Product Description

Schneider Electric's ATV930D11N4 is a variable speed drive designed for 3-phase synchronous and asynchronous power motors. It supports motors with ratings up to eleven kilowatts or fifteen horsepower for applications with slight overloads of up to 120%. The drive is also suitable for motors rated up to 7.5 kilowatts or ten horsepower for applications requiring significant overloads of up to 150%. It operates on a supply voltage from 380 volts to 480 volts AC.

This variable speed/frequency drive is ideal for various industrial processes including oil and gas, mining, metals, food and beverage, and water management. The device offers high motor performance and complete control for any kind of coupling in master/slave setups. The advanced network capabilities ensure continuity even during connection failures. The built-in web server and data logging features allow for efficient troubleshooting and maintenance. Advanced connectivity options such as EtherNet/IP and Modbus TCP enable integration into comprehensive automation systems. The ATV930D11N4 is intended for wall-mounted installation, with a vertical orientation recommended.

• Rated for motors up to 11kW/15hp
• Supports overloads up to 150%
• Compatible with EtherNet/IP and Modbus TCP

Product Highlights

High performance variable speed drive for various industrial applications with robust connectivity and operational efficiency.

Product Information

Standard Information

• Catalog Number: ATV930D11N4
• Brand: Schneider Electric

Technical Specifications

• Type: Variable speed drive
• Weight: 16.98 lb
• Width: 6.73 inches
• Height: 16.14 inches
• Depth: 9.29 inches
• Voltage: 380 to 480V AC
• Number of Phases: 3 Phase
• Country of Origin: Indonesia
