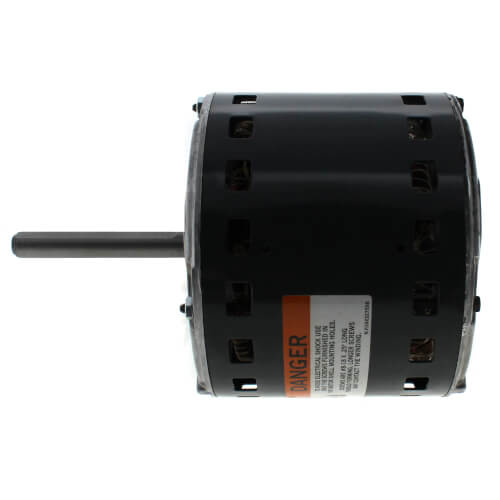

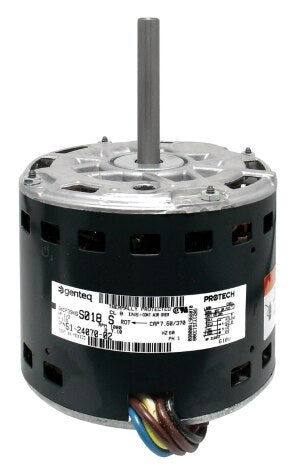

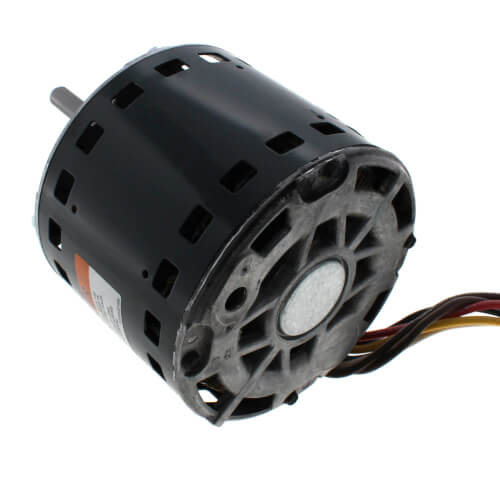

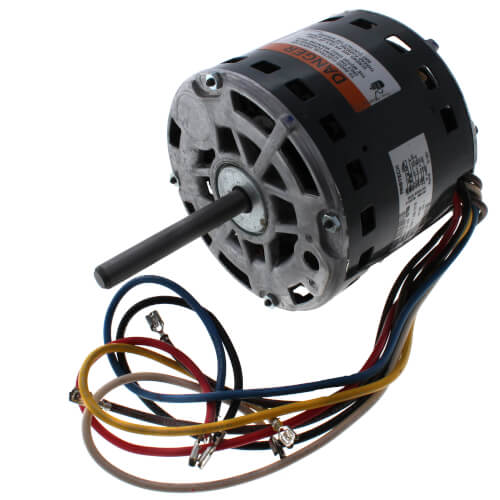

RUUD 51-24070-02 RUUD Blower Motor 1/2 HP 120V 51-24070-02

Product Description

The RUUD 51-24070-02 is a reliable blower motor suitable for various HVAC applications. This motor operates at 1/2 horsepower and is a single-phase unit, designed to function efficiently with four different speeds. It works at a voltage of 120V, achieving a maximum speed of 1075 RPM with counter-clockwise rotation. The motor is compatible with direct drive applications and features a shell-band and shell-screw mounting style.

• Application: Blower
• Horse Power: 1/2 HP
• Rotation Direction: CCW

Product Highlights

This blower motor is essential for effective air movement in heating and cooling systems.

Product Information

Standard Information

• Application: Blower
• Mounting Type: Shell-band | Shell-screw

Technical Specifications

• Bearing Type: Sleeve
• Drive Type: Direct Drive
• FLA at 120V (A): 7.10
• Frame Size: 48
• Frequency (Hz): 60
• High Speed (RPM): 1075
• Input Voltage (V): 120
• Shaft Length (in.): 3
• LRA at 120V (A): 12.40
• Body Diameter (in.): 5-5/8
• Body Length (in.): 4-3/4
• No. of Phases: 1
• Number of Speeds: 4
• Overall Length (in.): 8-5/16
• Overall Shaft Length (in.): 3-1/2
• Run Capacitor (uF/V): 7.5/370
• Shaft Diameter (in.): 1/2
