ROMEX ROMEX14/3W/GRD250C NM-B Copper w/Ground 14 AWG 250ft Coil

Product Description

The ROMEX NM-B 14/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable, MPN ROMEX14/3W/GRD250C, is intended for use in residential electrical wiring. This cable features three conductors, including a bare copper ground wire, suitable for branch circuits to power outlets, switches, and lighting.

• Used for wiring in dry locations and suitable for exposed or concealed applications.

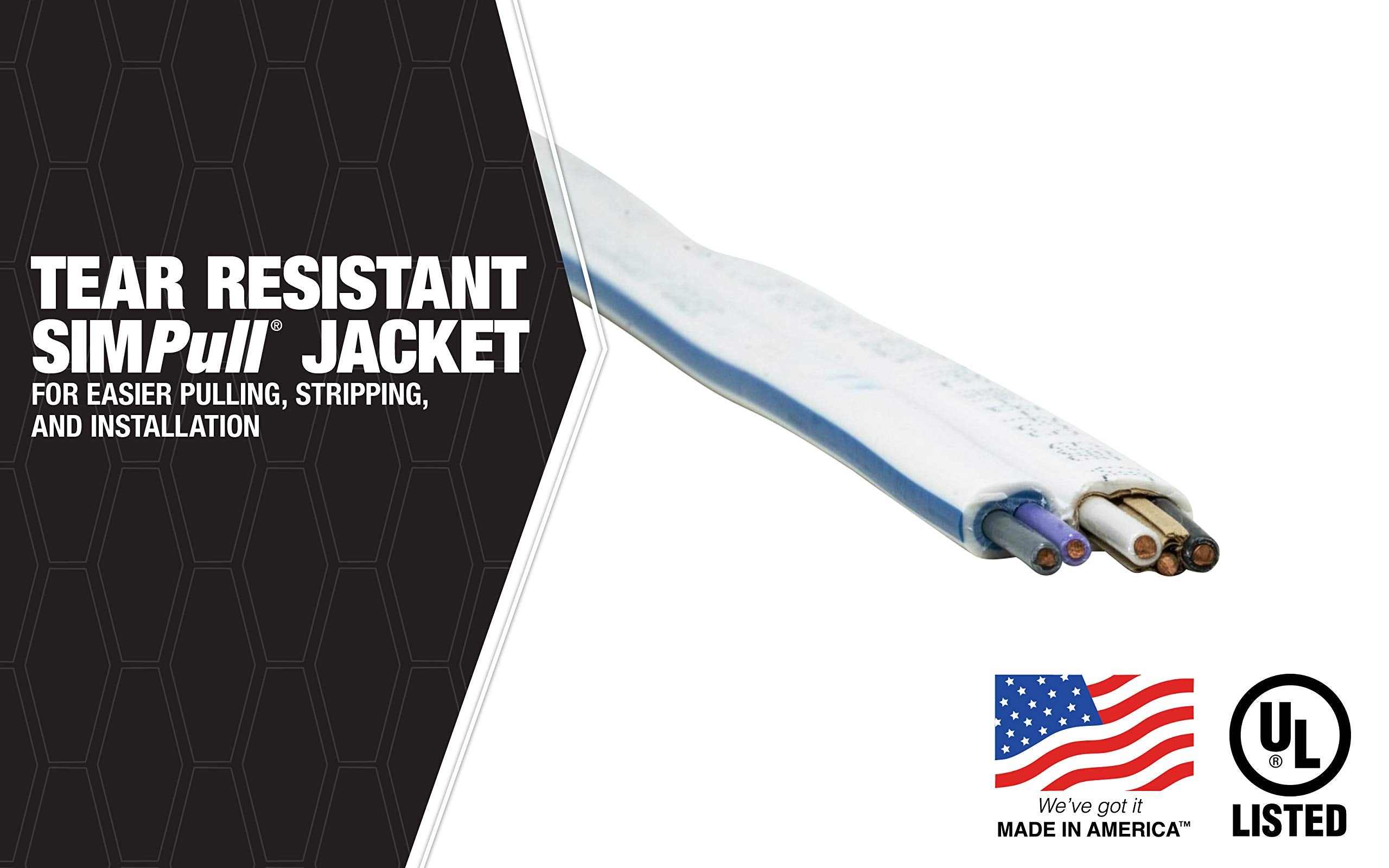

• Includes a patented SIMpull Cable Jacket for easy installation.
• Rated for 600 volts, meets UL and CSA standards.

Product Highlights

This cable is ideal for residential applications, functioning reliably in various settings.

Product Information

Standard Information

• Conductor Material: Copper
• Country of Origin: Made in America (USA)

Technical Specifications

• Conductor Size: 14 AWG
• Number of Conductors: 3
• Current (Ampacity): 15 Amp
• Insulation Material: PVC with Nylon
• Temperature Rating: 90°C (conductor); ampacity limited to 60°C
• Voltage Rating: 600 Volt
• Type: NM-B
• Stranding: Solid
• Jacket Material: PVC with SIMpull Technology
• Ground Wire Size: 14 AWG
• PVC Insulation Thickness: 0.380 mm / 0.015 inches
• Nylon Thickness: 0.100 mm / 0.004 inches
• Nominal Cable Dimensions: 7.9 mm / 0.31 inches (diameter)
