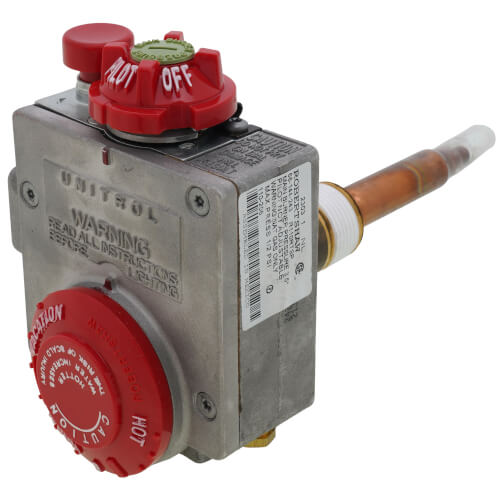

ROBERTSHAW 110-206 Natural Gas Water Heater Valve 45000 BTU

Product Description

The ROBERTSHAW 110-206 thermostat/natural gas valve offers dependable control for water heaters. Optimized for both domestic and recreational vehicle (RV) applications, this valve ensures reliable operation with a robust design suited for various environments. Manufactured by ROBERTSHAW, a trusted name in heating and appliance controls.

• Integrated Energy Cut-Off system for safety.
• Adjustable temperature up to 160 degrees Fahrenheit.
• Efficient gas flow regulation at 3.5 inches water column.

Product Highlights

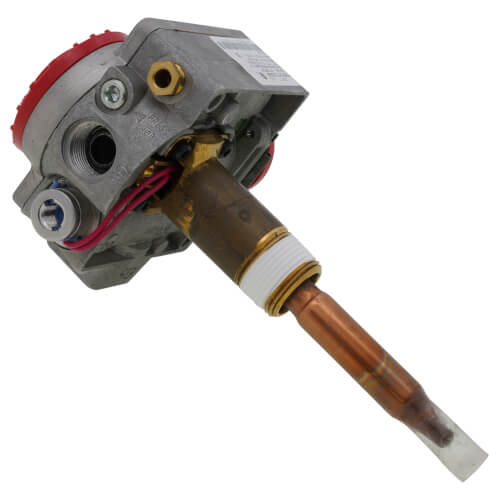

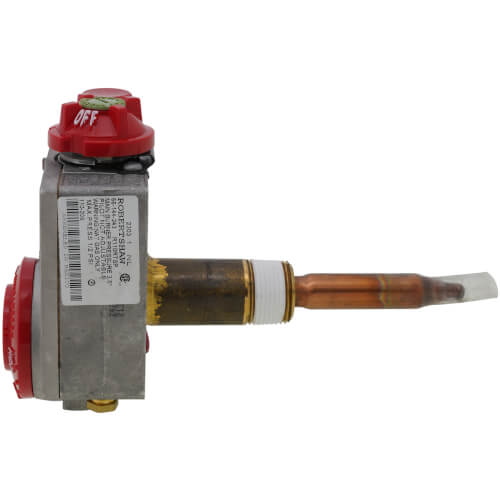

This thermostat/gas valve unit features a 5-1/2-inch sensing element that offers precise temperature management to ensure efficient and safe water heating. Its 2-3/8-inch shank provides compatibility with numerous water heater models, while the 45000 BTU capacity supports a broad range of heating applications. The valve is designed for easy installation and is equipped with both a 1/2-inch pipe inlet and a 1/2-inch inverted flare outlet, promoting versatile connectivity and straightforward setup.

Product Information

Standard Information

• Brand: ROBERTSHAW
• MPN: 110-206

Technical Specifications

• Inlet Size: 1/2 inch
• Outlet Size: 1/2 inch inverted flare
• Shank Length: 2-3/8 inches
• Pressure Regulation: 3.5 inches water column
• Temperature Range: 60 degrees Fahrenheit to 160 degrees Fahrenheit
• BTU Rating: 45000
