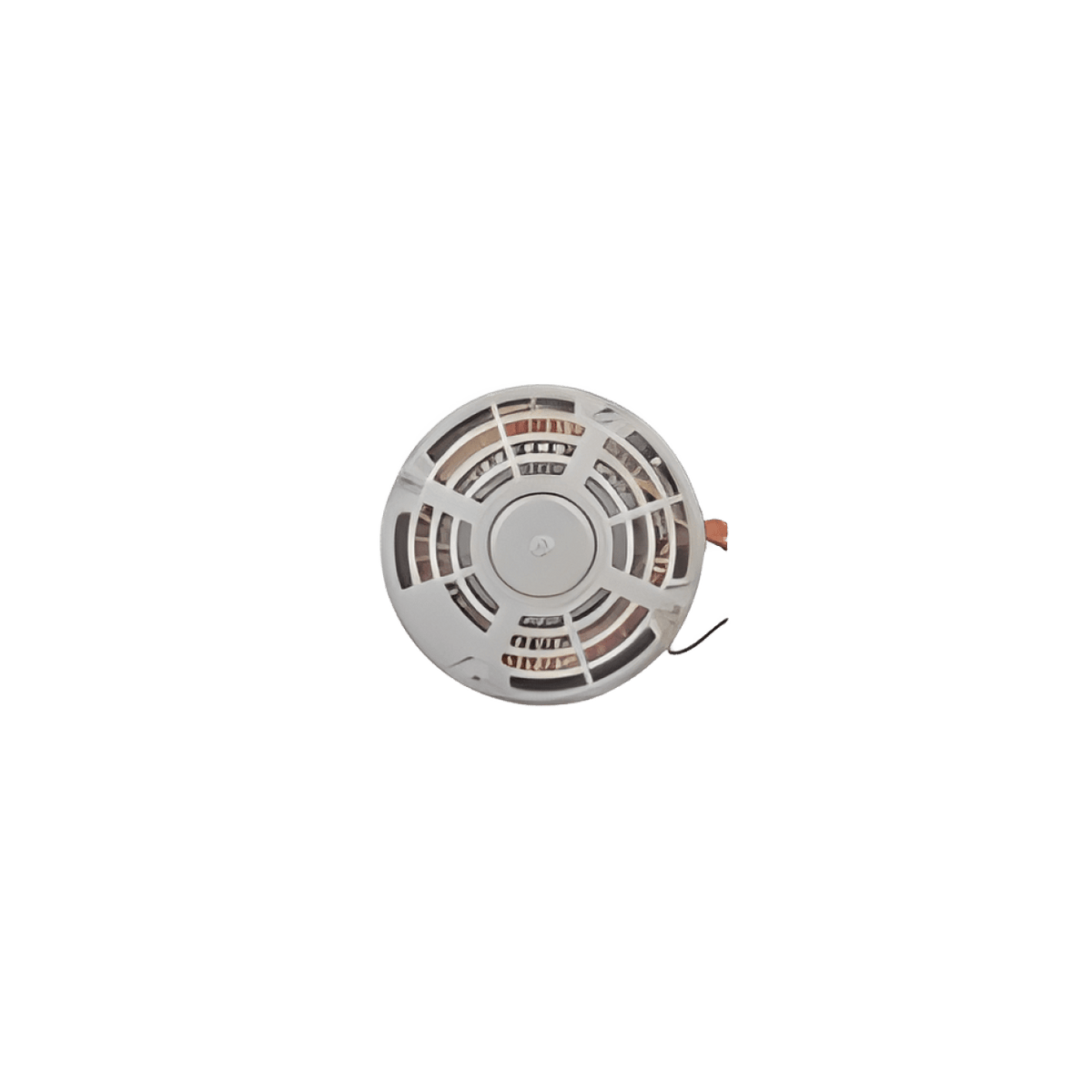

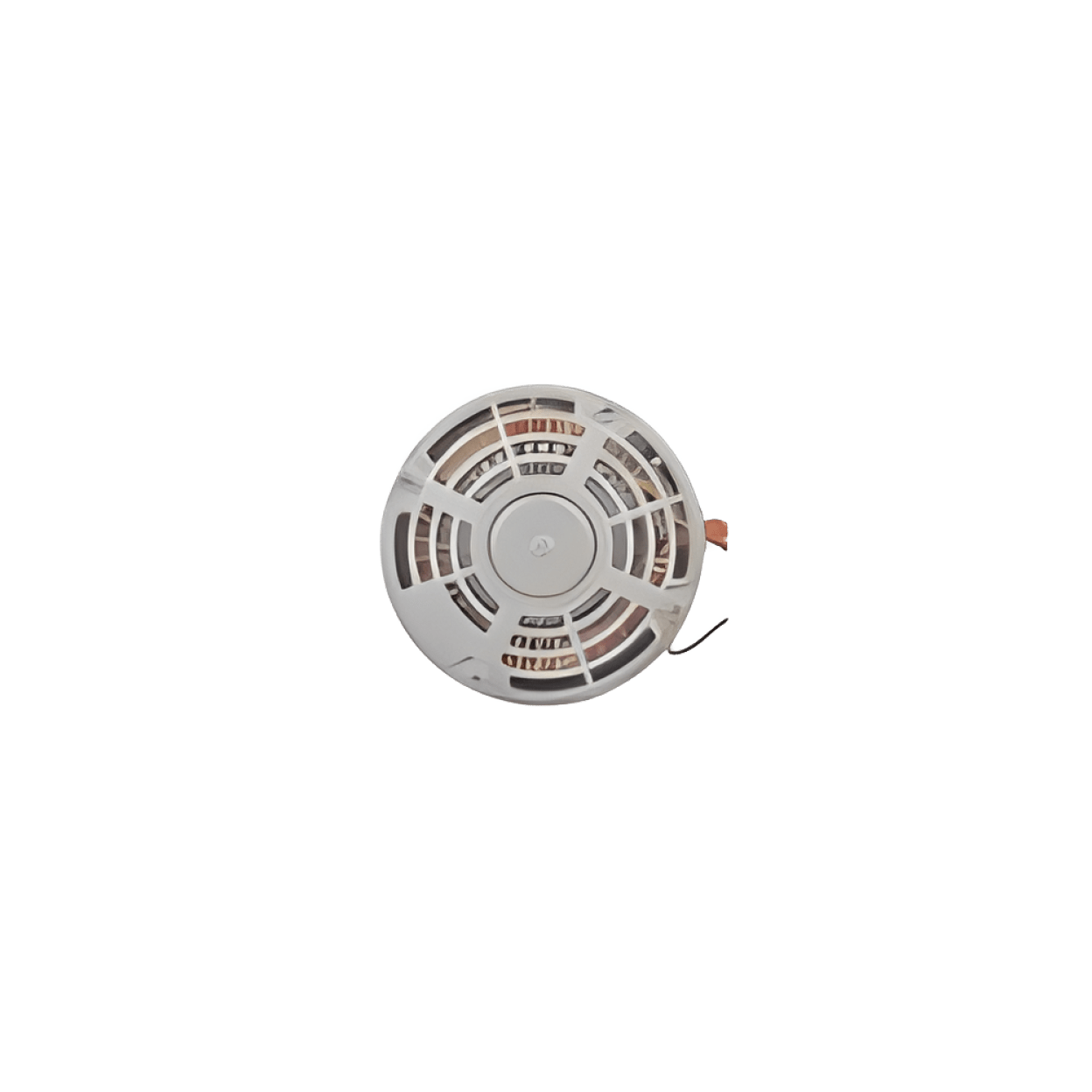

Rheem 51-104941-02 OEM Four-Speed Direct Drive Indoor Blower Motor 3/4 HP

Product Description

The Rheem 51-104941-02 is a reliable four-speed direct drive indoor blower motor. It operates at three-fourths horsepower, utilizing a voltage rating of one hundred twenty volts. This blower motor operates at one thousand seventy-five revolutions per minute and has an amp draw of eight point four. The device features a shell-band mounting option and counterclockwise rotation. Suitable for various HVAC applications, this blower motor can enhance airflow efficiency in heating and cooling systems.

• 3/4 horsepower motor
• Operates at 120 volts with a speed of 1075 RPM
• Designed for indoor applications with a direct drive mechanism

Product Highlights

This blower motor is engineered for efficiency and durability, making it ideal for both residential and commercial HVAC systems.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 54-632

Technical Specifications

• Voltage Rating: 120V
• Horse Power: 3/4 HP
• Phase: 1
• Running Speed: 1075 RPM
• Shaft Diameter: 1/2 inch
• Mounting Type: Shell-Band
• Shaft Length: 3-1/2 inch
• Capacitor: 20 uf/370V
• Body Diameter: 5-5/8 inch
• Frame Size: 48
• Drive Type: Direct Drive
• Bearing Type: Ball
• Rotation: CCW
